AW Rating
Features & Options:
2-1/2” Profile / Thermal Break
Commercial Grade: 1/16” Wall Thickness.
Heavy Duty: 1/8” Wall Thickness.
¼” or 1” Glass Prep.
4-Bar Hinges / Cam Handles (Windows)
Butt Hinges / Rotary Handles
Multi-Point Lock (Casement)
Screen (Optional)
AVAILABLE IN:
Clear Anodized
Dark Bronze Anodized
White Painted
Bronze Painted
Custom Finishes Available
| GAMCO Product | Gamco Model/Description | Heavy Commercial(HC)/ Commercial(C) | Wall Thickness | Frame Depth | Minimum Size | Maximum Size | Air-Std | Water-psf | Deflect-psf | Struct-psf | Matching Fixed Frame | Screen Available | Flanged Fame | Colors | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |  | W250C Thermal Single Out-swing | * | 0.062 | 2.5 | 18" x 24" | 30" x 60" | * | * | * | * | W250C Fixed | YES | YES | Clear Anodized Dark Bronze Anodized White Painted Bronze Painted |
| W250C Thermal Twin In or Out-swing | * | 0.062 | 2.5 | 36" x 24" | 60" x 60" | * | * | * | * | W250C Fixed | |||||
| W250HC Thermal Single Out-swing | C-HC100 | 0.125 | 2.5 | 18" x 24" | 36" x 60" | * | * | * | * | W250HC Fixed | |||||
| W250HC Thermal Twin In or Out-swing | * | 0.125 | 2.5 | 36" x 24" | 72" x 60" | * | * | * | * | W250HC Fixed | |||||
 |  | W250C Thermal Projected In or Out | P-C60 | 0.062 | 2.5 | 18" x 18" | 60" x 48" | * | * | * | * | W250C Fixed | |||
 |  | W250HC Thermal Projected In or Out | P-HC70 | 0.125 | 2.5 | 18" x 18" | 60" x 48" | * | * | * | * | W250HC Fixed | |||
 |  | W250C Fixed Thermal | F-C60 | 0.062 | 2.5 | 24" x 24" | 84" x 84" | * | * | * | * | YES | |||
| W250HC Fixed Thermal | F-HC70 | 0.125 | 2.5 | 24" x 24" | 84" x 84" | * | * | * | * | YES | |||||
| TYPE | W250C | W250HC |
|---|---|---|
| Awnings | P-C 65 | P-HC 70 |
| Hoppers | P-C 65 | P-HC 70 |
| Casement | P-C 65 | C-HC 100 |
| Casement | C-AW 60 | |
| Fixed Lite | F-C 110 |
Download:
GAMCO Brochure Window
GAMCO Product Catalog
Catalog-Product Architectural Details
Test Reports:
W250C Awning Structural Test Report (AAMA205.01)
W250C Fixed Structural Test Report (AAMA205.01)
W250C Out Casement Structural Test Report (AAMA205.01)
W250C Thermal Test Report
W250HC Sound Test Report
W250HC Structural Test Report
| GAMCO Product/Type | Drawing-PDF File | Drawing-CAD File | |
|---|---|---|---|

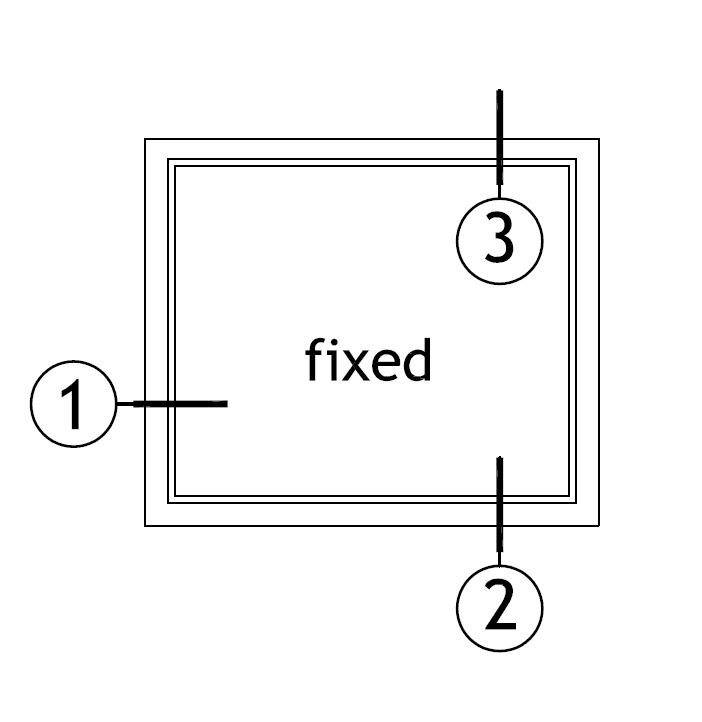

 | W250C Fix Lite | W250C-Fix Lite | W250C-Fix Lite |

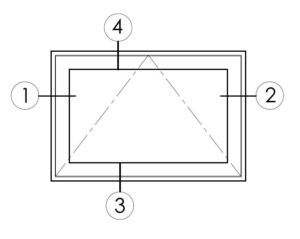

 | W250C Awning with Cam Handle | W250C-Awning With Screen Cam Handle | W250C-Awning With Screen Cam Handle |
 | W250C Awning with Rotary Handle | W250C-Awning With Rotary Handle | W250C-Awning With Rotary Handle |

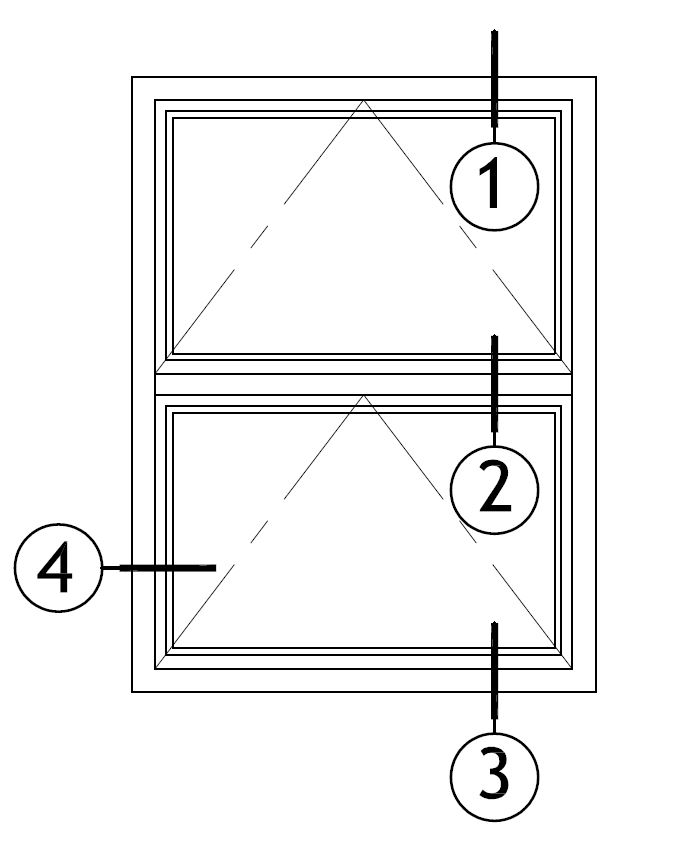

 | W250C Stacked Awning | W250C-Awning Stacked | W250C-Awning Stacked |

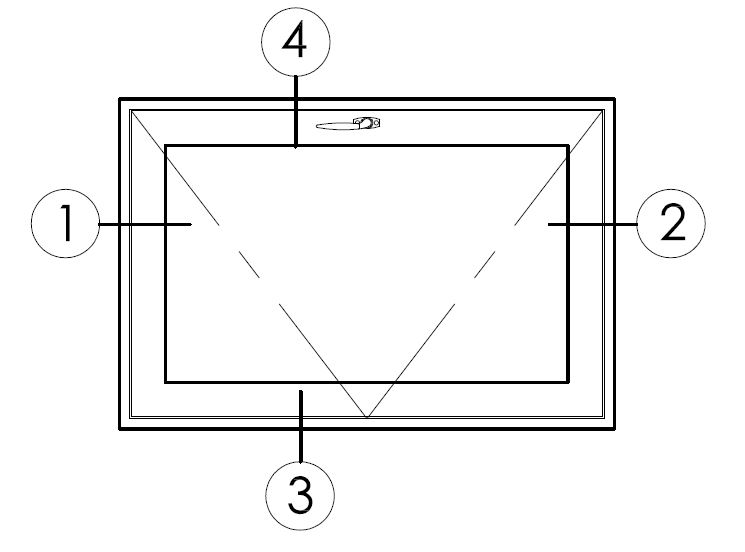

 | W250C Hopper | W250C-Hopper With Screen | W250C-Hopper With Screen |
 | W250C Stacked Hopper | W250C-Hopper Stacked | W250C-Hopper Stacked |

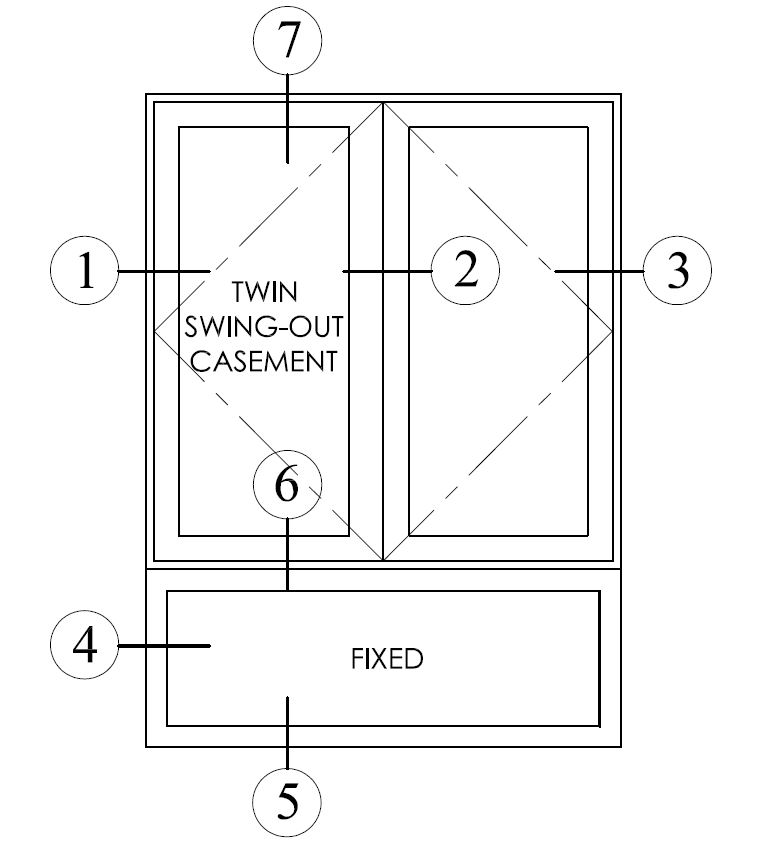

 | W250C Casement Windows over Fix Lite | W250C-Casement Twin Swing Out | W250C-Casement Twin Swing Out |

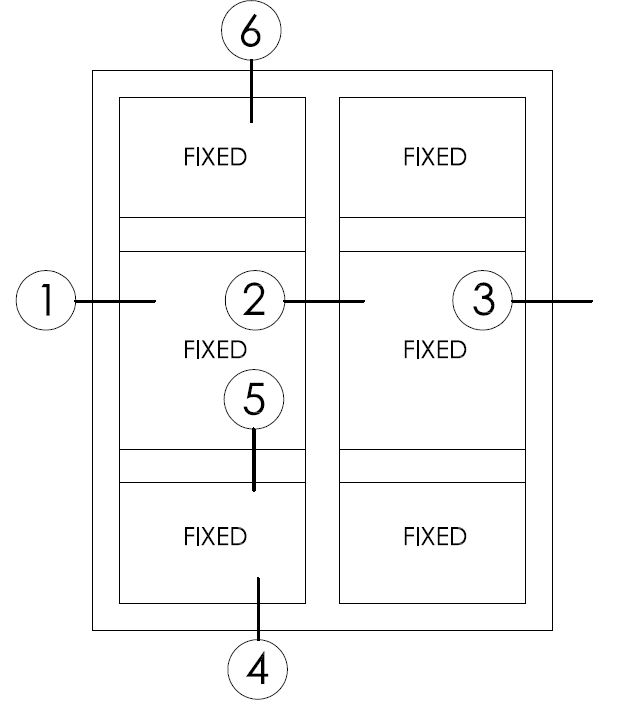

 | W250HC Fix Lite with True Mullions | W250HC-Fix Lite | W250HC-FixLite |

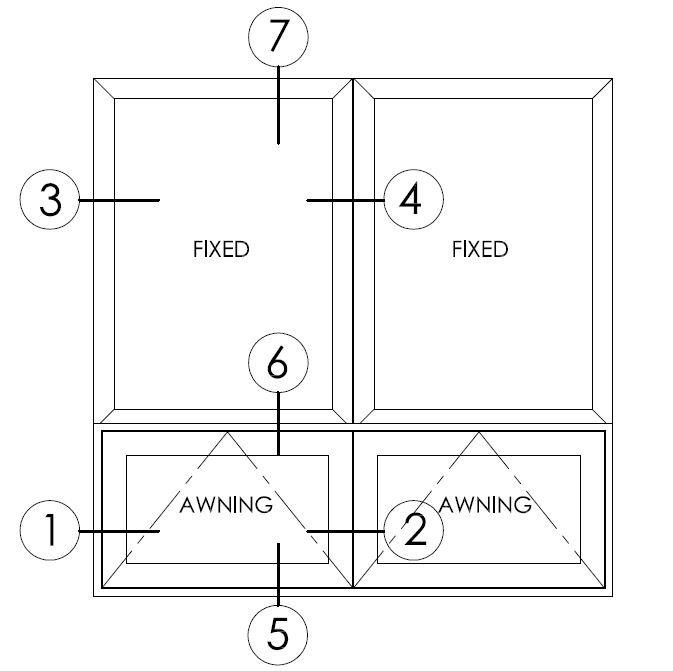

 | W250HC Fix Lites over Awnings | W250HC-Awning With Fix Lite | W250HC-Awning With Fix Lite |

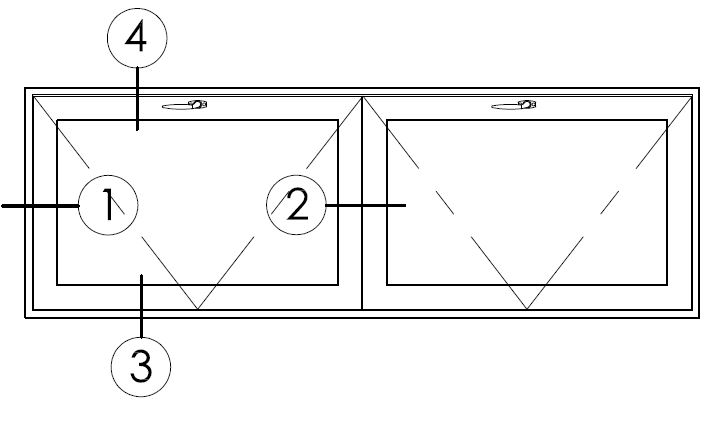

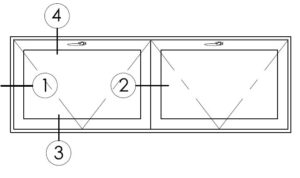

 | W250HC Twin Hoppers | W250HC-Hopper Twin | W250HC-Hopper Twin |
 | W250HC Fix Lites between Casements (In-Swing) | W250HC-Casement Swing In | W250HC-Casement Swing In |
 | W250HC Casement over Louver | W250HC-Casement With Louver | W250HC-Casement With Louver |
