STOREFRONT

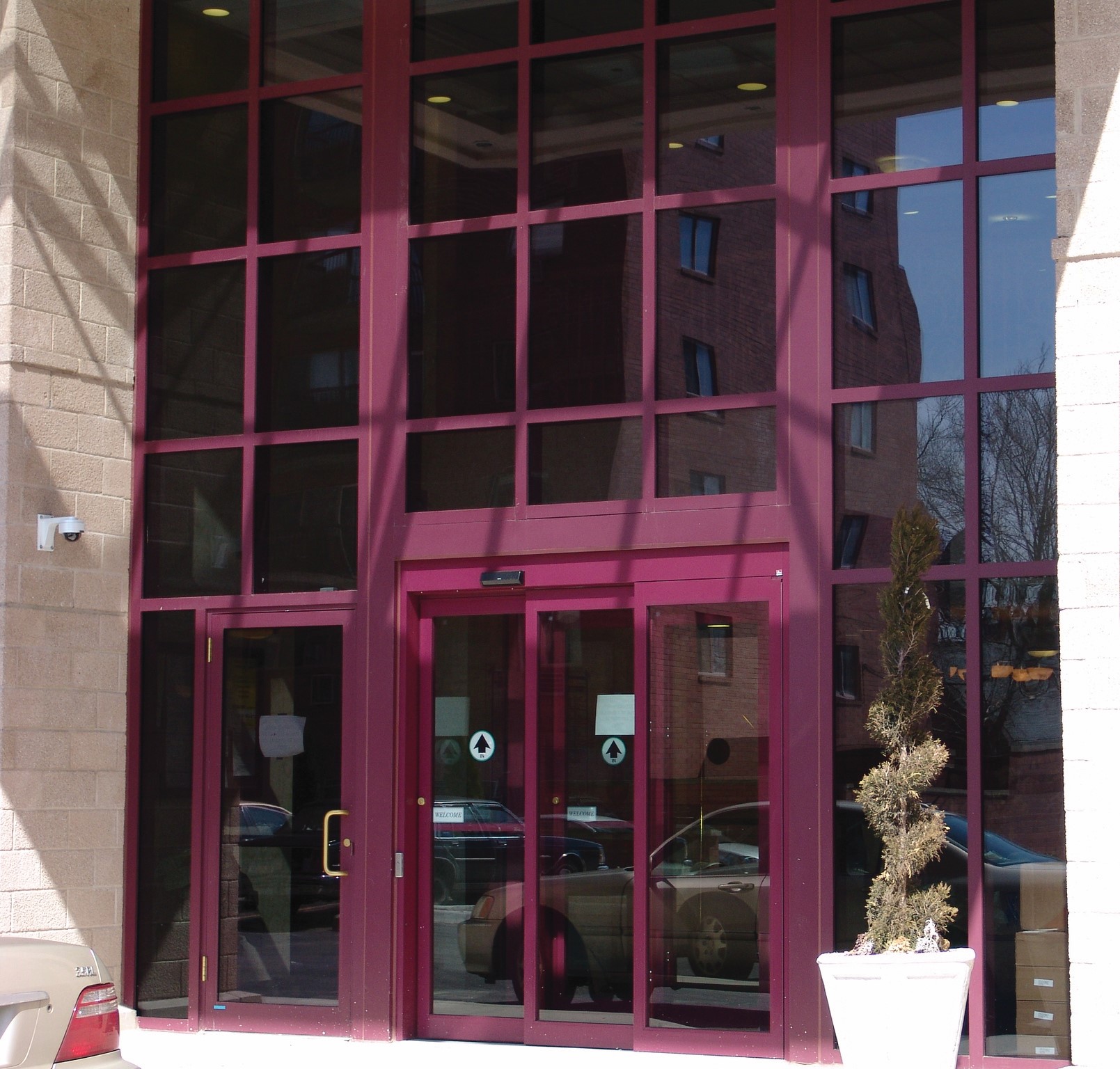

The FG-450 and FG-451 storefront systems are both available in shear block and screw spline fabrication. The FG-450 utilizes 1/4” and up to 1/2” glass, while the FG-451 utilizes 1/2” and up to 1” insulated glass.

The FG-451T features thermal-break designs to reduce heat transfer and keep internal surfaces warmer. The FG-451T accepts 1” insulated glass.

*Options: 1/4” to 3/4” reducers

GAMCO ProductGamco Model/
Description
Wall ThicknessFrame DepthProfileGlazing
Thickness
Minimum SizeMaximum Size w/o Structural ReinforcementColorStainless Steel Cladding
FG-450
Flushing Glazing
0.0854-1/2"1-3/4"1/4", 3/8", or 1/2"8" x 8"10' x 10'Clear Anodized
Dark Bronze
White Paint
Y
FG-451
Flushing Glazing
0.0854-1/2"2"1"8" x 8"10' x 10'Clear Anodized
Dark Bronze
White Paint
Y
FG-451 Thermal
Flushing Glazing
0.0854-1/2"2"1"8" x 8"10' x 10'Clear Anodized
Dark Bronze
White Paint
Y

TypeMedium Stile DoorFlush Glaze FG-450Flush Glaze FG-451
Size (Width X Height)3′-0″ x 7′-0″10′-5″ x 8′-0″10′-5″ x 8′-0″
ASTM E 283Air Infiltration@6.24 PSF (50MPH)2.00 CFM/SQFT0.01 CFM/SQFT0.015 CFM/SQFT
ASTM E 331Water Test Pressure (No Leakage)1.57 PSF10.00 PSF12.00 PSF
ASTM E 330Uniform Structural Test To Positive & Negative Pressure (No Damage)82.50 PSF52.5 PSF52.5 PSF
