D-Series Door
-
Clear Anodized
-
Dark Bronze Anodized
-
White-Painted
-
Black-Painted (D350 Medium-stile ONLY)
- *Custom finish available upon request
Our D-Series commercial door system provides a refined aluminum storefront entrance solution for first floor and interior commercial applications, perfect for multi-tenant retail, corporate and medical office suites, educational facilities, and other institutions. Crisp and contemporary, these doors accent any building’s primary points of access and can be seamlessly integrated with our storefront, curtain wall, window, and other product lines.
Our system is custom-engineered for demanding commercial environments, including high-traffic retail streetscapes, office lobbies and vestibules, and mixed-use developments. We offer durable aluminum construction with extensive customization for size, bottom/mid-rail options, finishes, and hardware selection. This allows design teams to meet functional requirements when it comes to traffic, security, and accessibility, without sacrificing performance and look.
NOTE: GAMCO’s commercial doors are intended for commercial spaces and first floor entrances and may also be used in internal enclosed spaces. For any questions, please speak to a GAMCO sales rep.
Features & Options
×
Hover over the features & options to learn more.

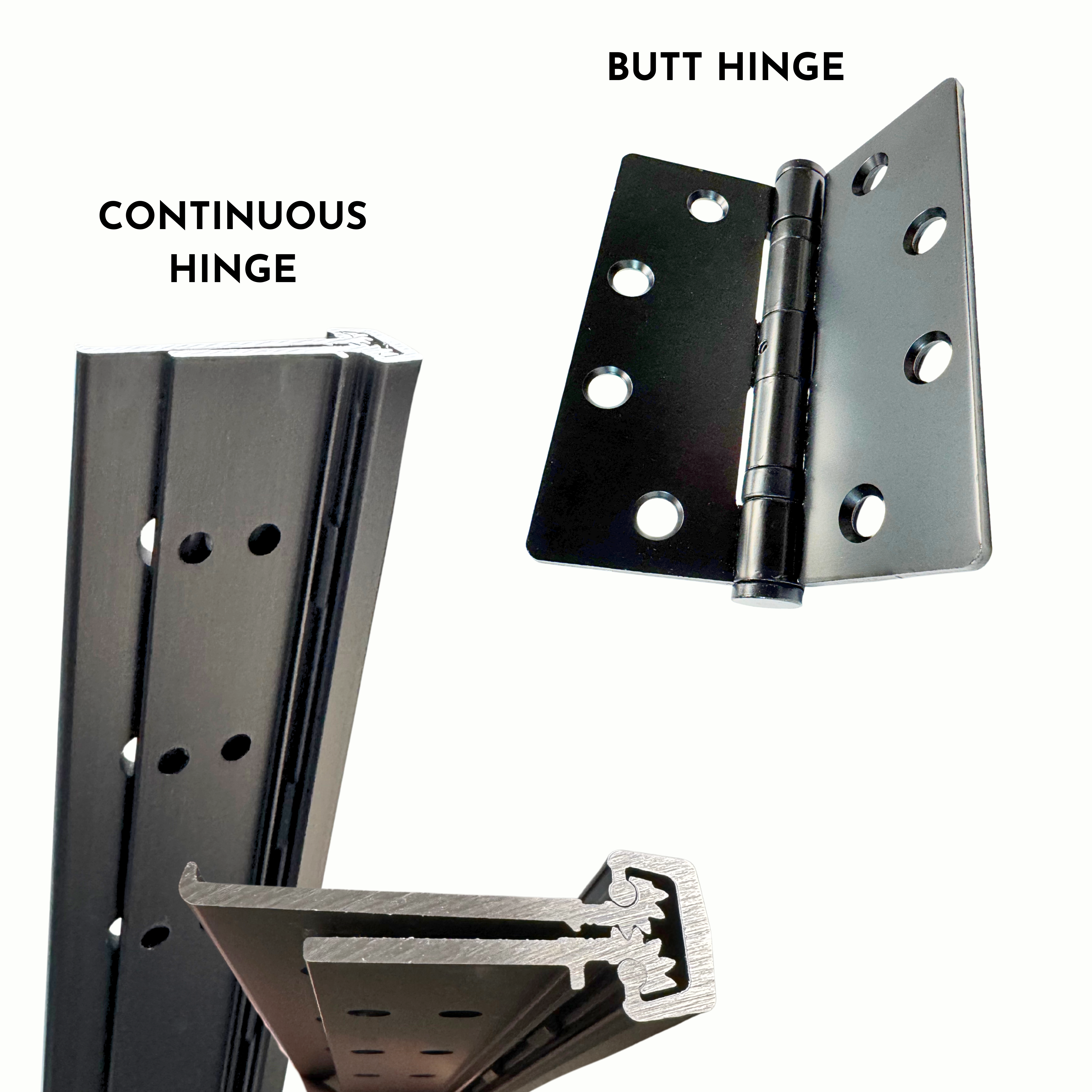

Butt Hinge / Continuous Hinge
Butt Hinge / Continuous Hinge
Butt Hinge:
Best for everyday doors that do not require full-length support.
Continuous Hinge:
Runs the full height of the door, distributing weight evenly along the entire edge.
Butt Hinge / Continuous Hinge
Butt Hinge:Best for everyday doors that do not require full-length support.
Continuous Hinge:
Runs the full height of the door, distributing weight evenly along the entire edge.
C.O.C Center Hung / Offset Hung
C.O.C Center Hung / Offset Hung
Note: These closers allow the door to be opened 90 or 105 degrees.
Center Hung:
Allows the door to swing in both directions while providing a clean, frameless look.
Offset Hung:
This concealed closer can only open towards one direction.
C.O.C Center Hung / Offset Hung
Note: These closers allow the door to be opened 90 or 105 degrees. Center Hung:
Allows the door to swing in both directions while providing a clean, frameless look.
Offset Hung:
This concealed closer can only open towards one direction.

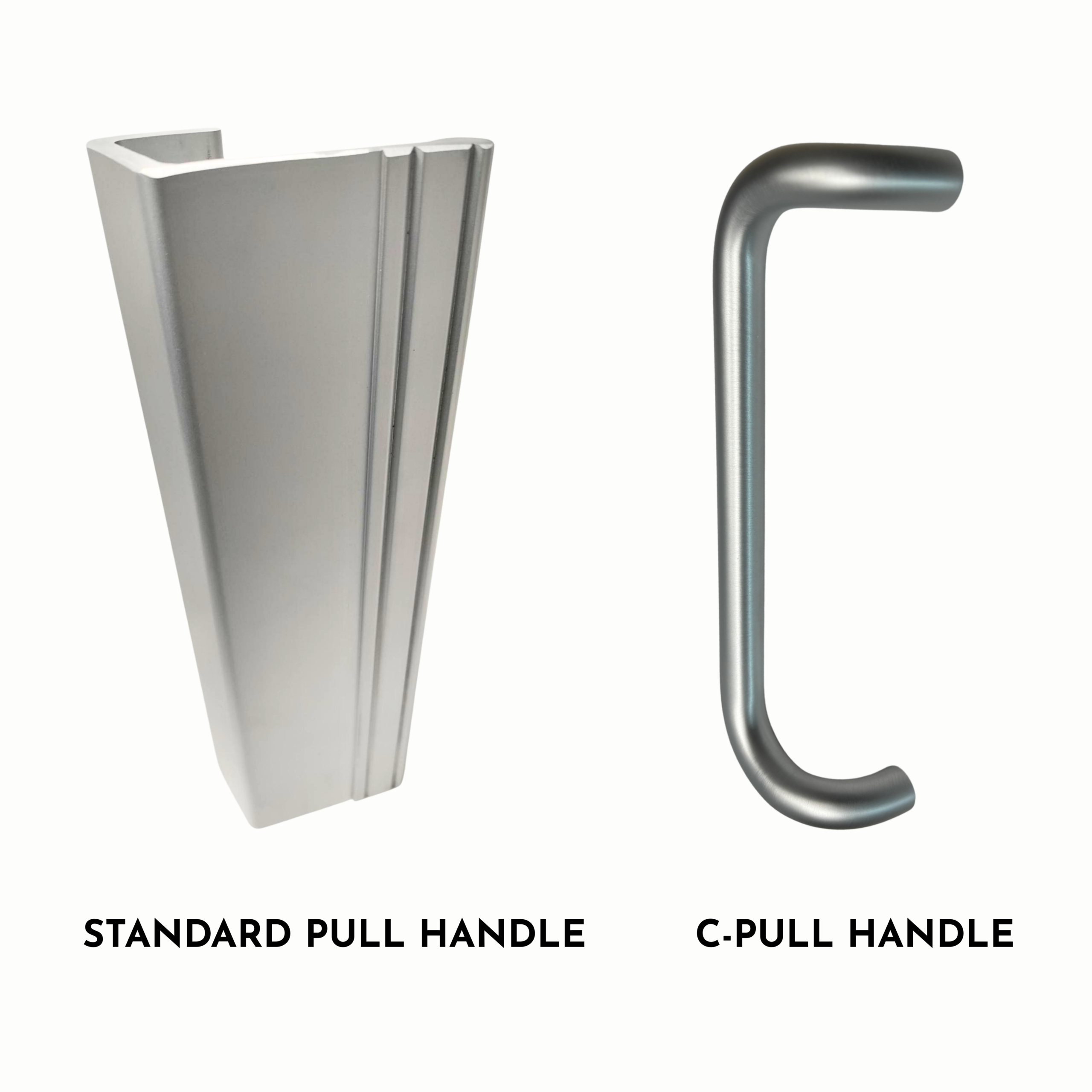

Standard / C-Pull and Push Handles
Standard / C‑Pull and Push Handles
Standard Push/Pull Handles:
Rectangular handles with ridges.
C-Pull/Push Handles:
Door handle in the shape of a C
Standard / C‑Pull and Push Handles
Standard Push/Pull Handles: Rectangular handles with ridges.
C-Pull/Push Handles:
Door handle in the shape of a C

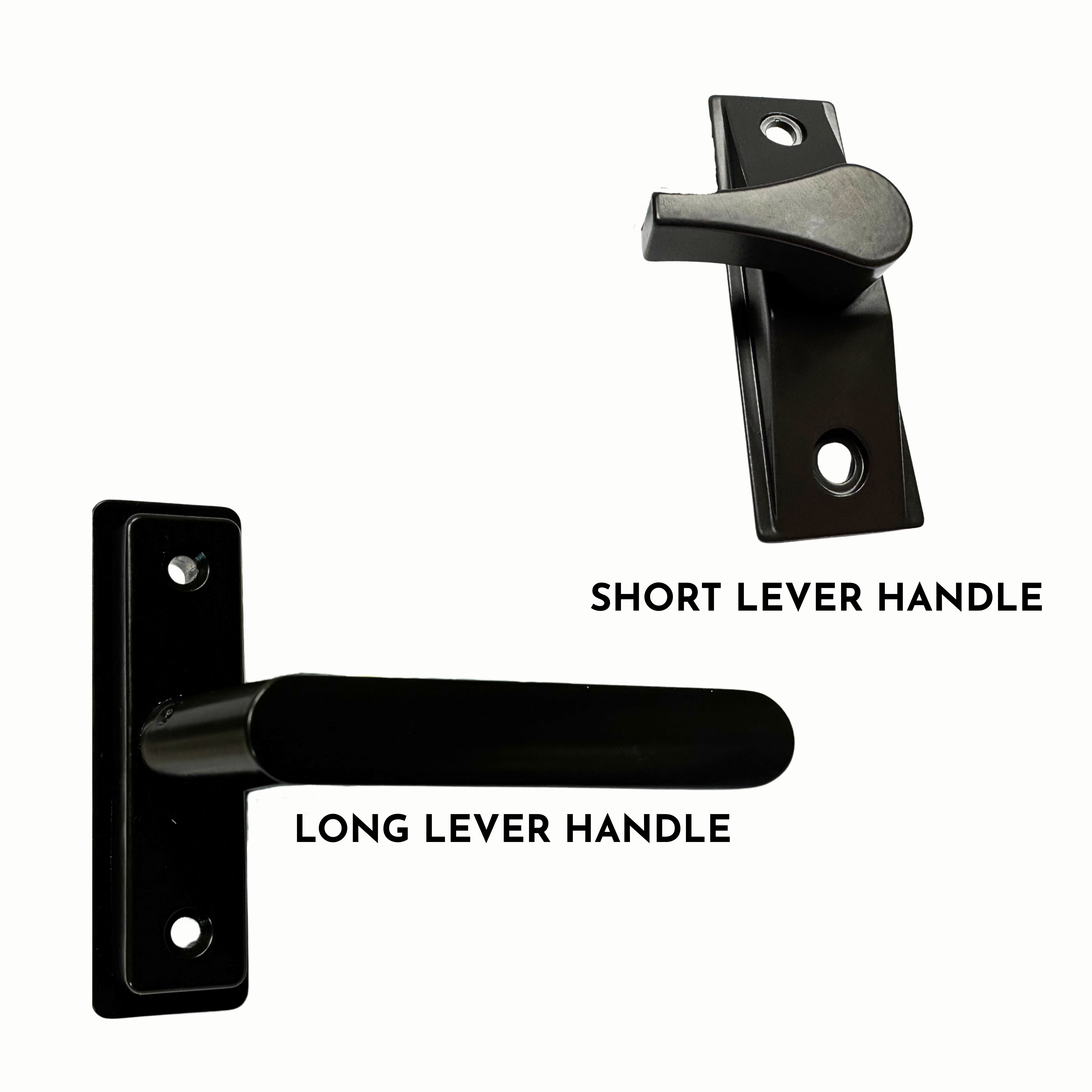

Long / Short Lever Handle
Long / Short Lever Handle
Long Lever Handle:
With an extended grip, less force is required to operate.
Short Lever Handle:
Taking up less space, short lever handles are great for smaller or lighter doors.
Long / Short Lever Handle
Long Lever Handle: With an extended grip, less force is required to operate.
Short Lever Handle:
Taking up less space, short lever handles are great for smaller or lighter doors.

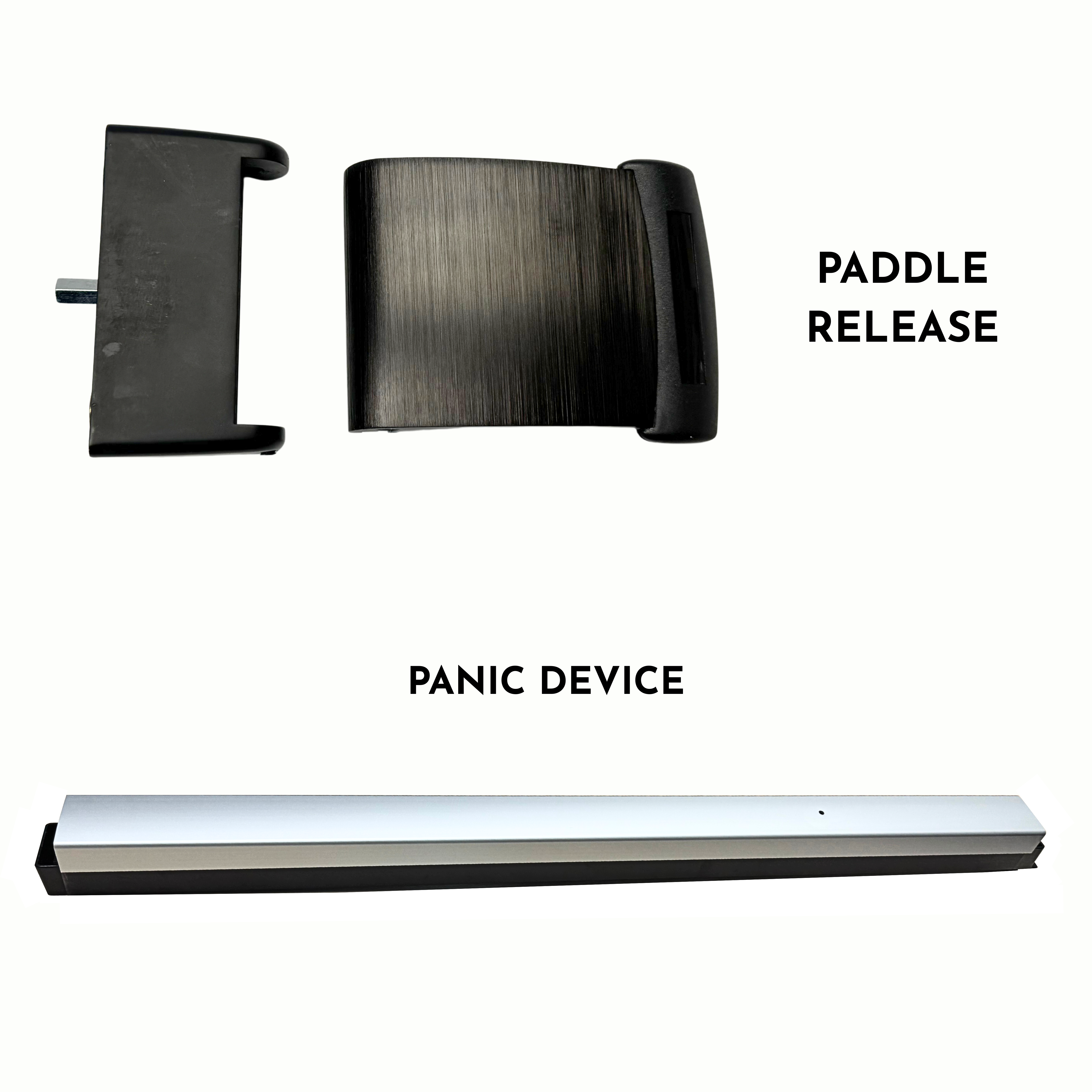

Paddle Release / Panic Device
Paddle Release / Panic Device
Paddle Release:
A small, hand‑operated push paddle that unlatches the door when pressed.
Panic Device:
A long horizontal bar across the door used for emergency exits.
Paddle Release / Panic Device
Paddle Release:A small, hand‑operated push paddle that unlatches the door when pressed.
Panic Device:
A long horizontal bar across the door used for emergency exits.

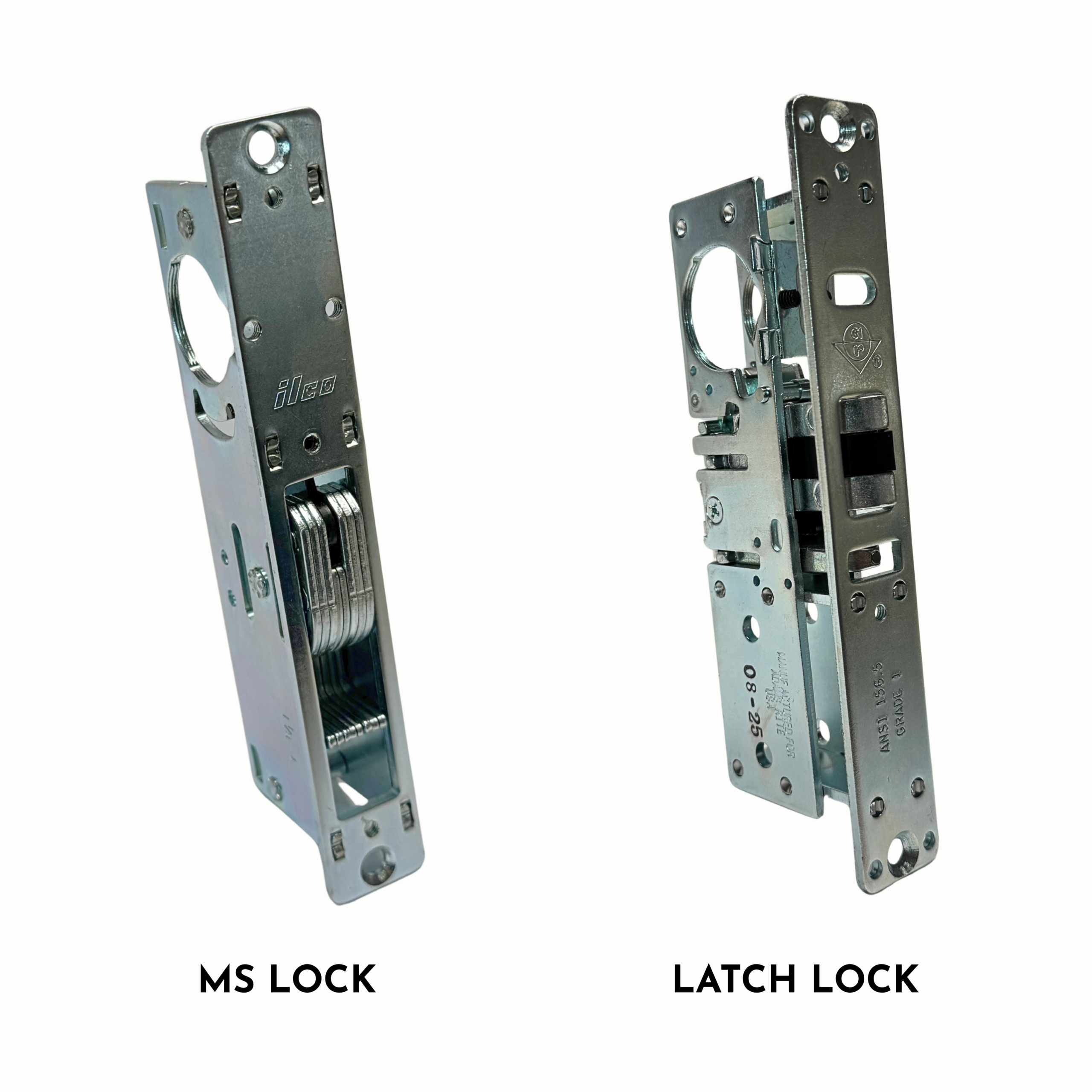

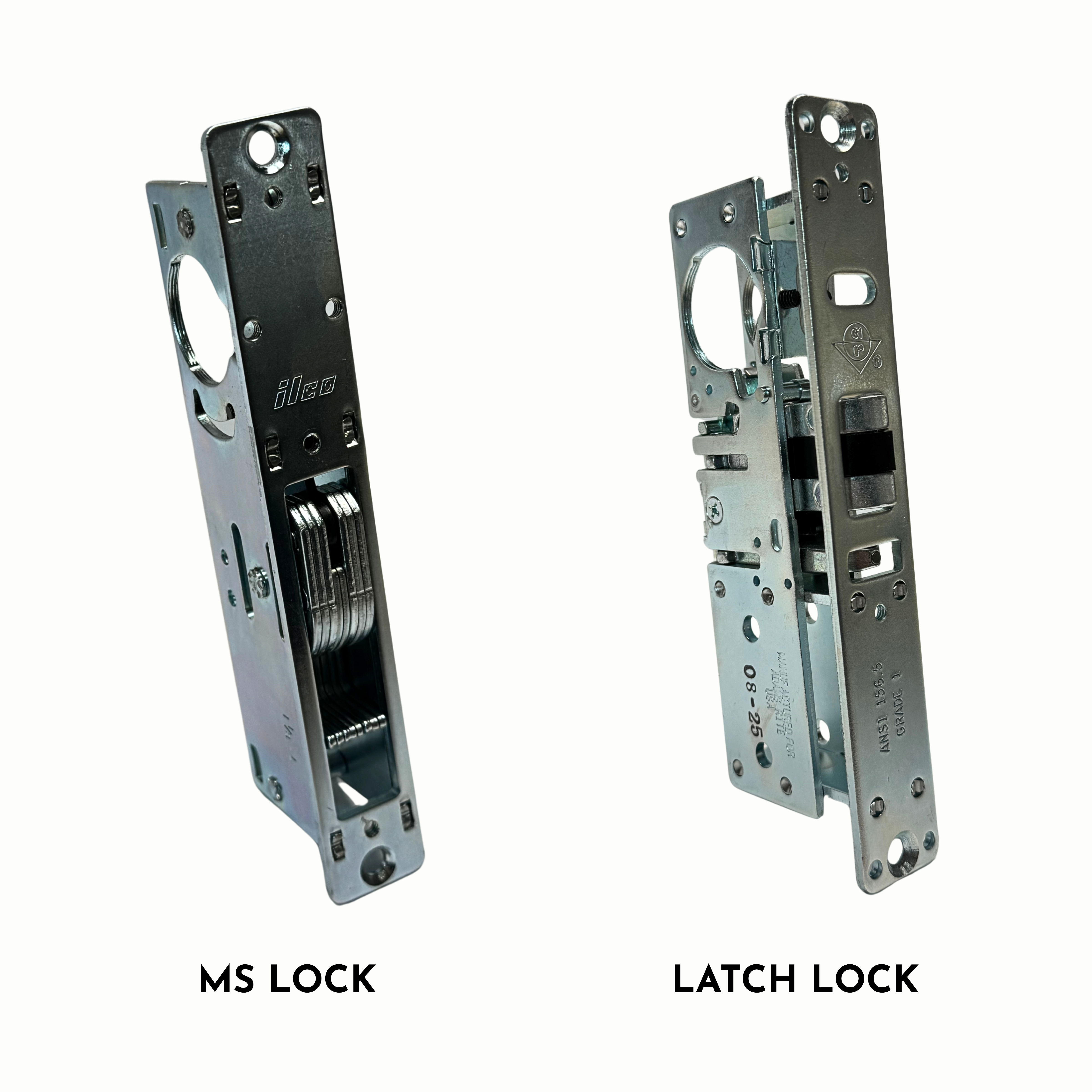

Standard MS Lock / Latch Lock
Standard MS Lock / Latch Lock
Standard MS Lock:
Uses a solid bolt that does not move unless a key turns it.
Latch Lock:
Uses a spring‑loaded latch that automatically clicks into the strike when the door closes.
Standard MS Lock / Latch Lock
Standard MS Lock:Uses a solid bolt that does not move unless a key turns it.
Latch Lock:
Uses a spring‑loaded latch that automatically clicks into the strike when the door closes.
Electric Strike / Magnetic Lock
Electric Strike / Magnetic Lock
Electric Strike:
Remote or electronic control of a mechanically latched door with access control systems (keypads, card readers, intercoms).
Magnetic Lock:
Provides high holding force using an electromagnet. It secures doors that cannot use a latch or deadlatch.
Electric Strike / Magnetic Lock
Electric Strike:Remote or electronic control of a mechanically latched door with access control systems (keypads, card readers, intercoms).
Magnetic Lock:
Provides high holding force using an electromagnet. It secures doors that cannot use a latch or deadlatch.
Features & Options
Please click on hardware to learn more.
Butt Hinge / Continuous Hinge
×
Butt Hinge / Continuous Hinge
Butt Hinge: Best for everyday doors that do not require full-length support.
Continuous Hinge: Runs the full height of the door, distributing weight evenly.
Center Hung / Offset Hung with C.O.C / Floor Closer
×
Center Hung / Offset Hung with C.O.C / Floor Closer
Center Hung: Allows the door to swing both ways with a clean frameless look.
Offset Hung with C.O.C: Concealed closer that opens 90° or 105° and can hold open.
Floor Closer: Heavy‑duty closer installed in the floor for very heavy doors.
Standard / C‑Pull and Push Handles
×
Standard / C‑Pull and Push Handles
Door handle in the shape of a C.
Long / Short Lever Handle
×
Long / Short Lever Handle
Long Lever Handle: Extended grip requires less force to operate.
Short Lever Handle: Compact and ideal for smaller or lighter doors.
Paddle Release / Panic Device
×
Paddle Release / Panic Device
Paddle Release: Hand‑operated paddle that unlatches the door.
Panic Device: Horizontal bar used for emergency exits.
Standard MS Lock / Latch Lock
×
Standard MS Lock / Latch Lock
Standard MS Lock: Solid bolt that only moves with a key.
Latch Lock: Spring‑loaded latch that clicks automatically when the door closes.
Electric Strike / Magnetic Lock
×
Electric Strike / Magnetic Lock
Electric Strike: Allows remote/electronic control with access systems.
Magnetic Lock: High holding force using an electromagnet.
*Other options: specific hardware upon request
D200 Narrow Stile Doors
| GAMCO Product/Type | Drawing-PDF File | Drawing-CAD File |
|---|---|---|

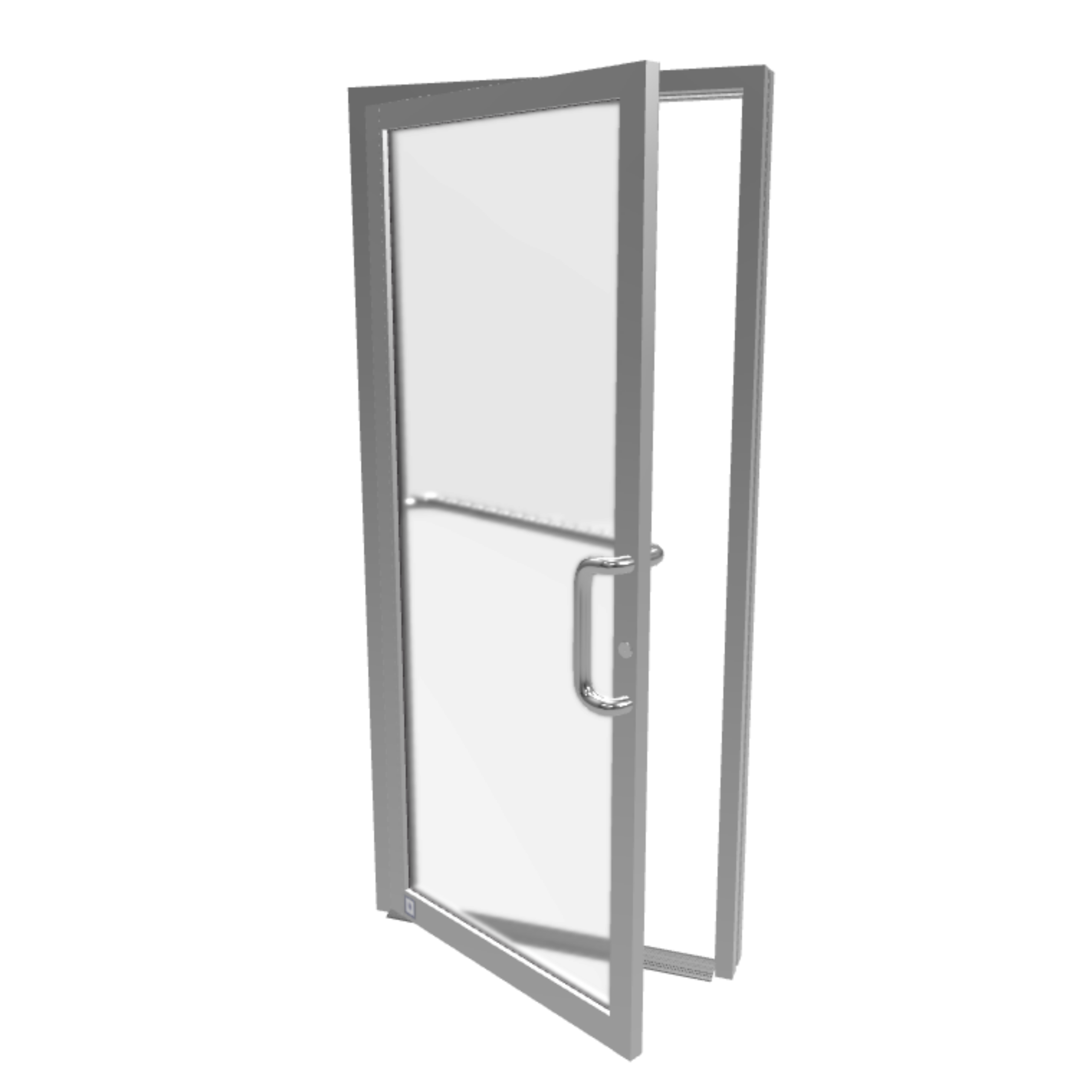

D200 Narrow Stile Single Door
| Narrow Stile Single Door | Narrow Stile Single Door |
D200 Narrow Stile Pair Door
| Narrow Stile Pair Door | Narrow Stile Pair Door |
D350 Medium Stile Doors
| GAMCO Product/Type | Drawing-PDF File | Drawing-CAD File |
|---|---|---|

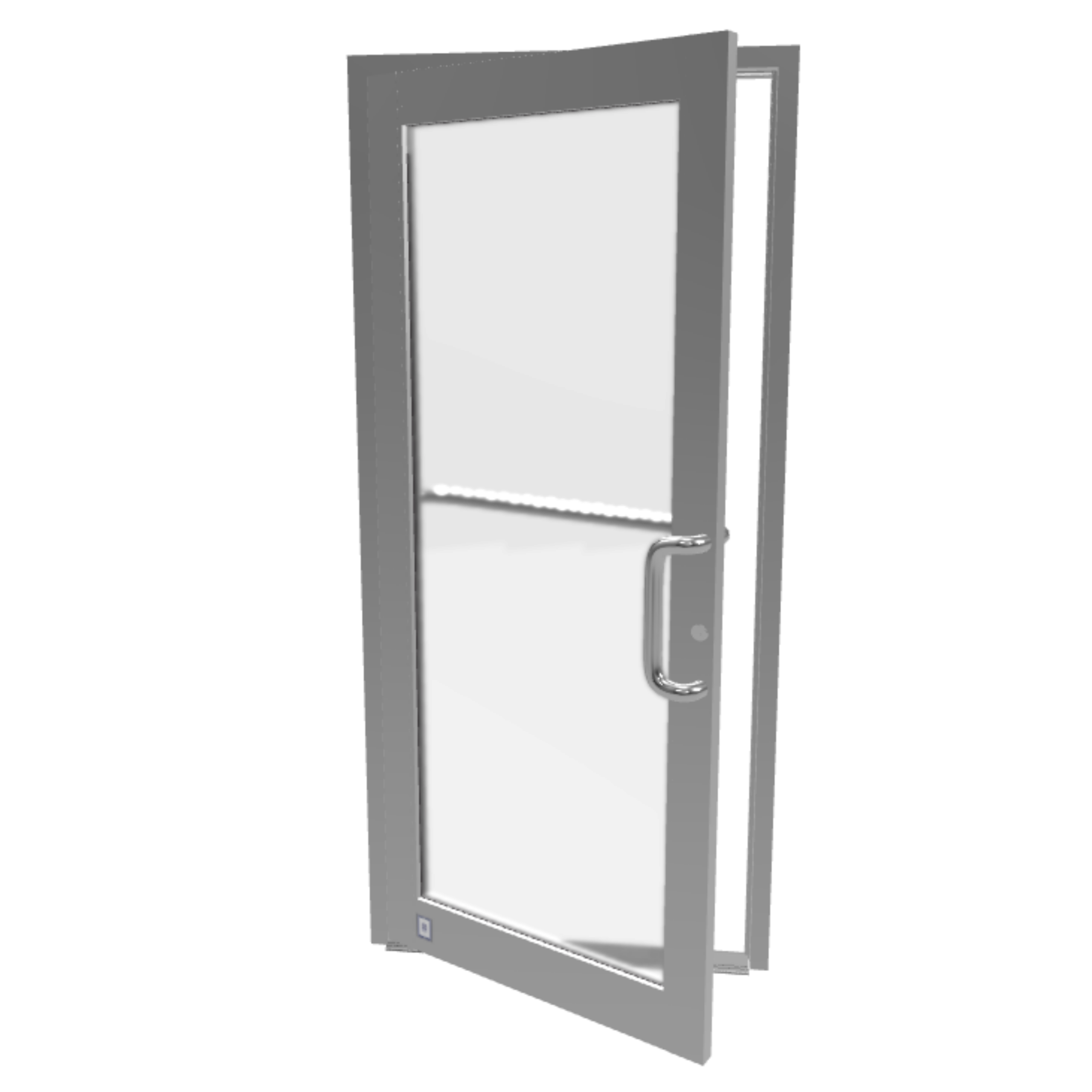

D350 Medium Stile Single Door | Medium Stile Single Door | Medium Stile Single Door |
D350 Medium Stile Pair Door  View in 3D | Medium Stile Pair Door | Medium Stile Pair Door |
D500 Wide Stile Doors
| GAMCO Product/Type | Drawing-PDF File | Drawing-CAD File |
|---|---|---|

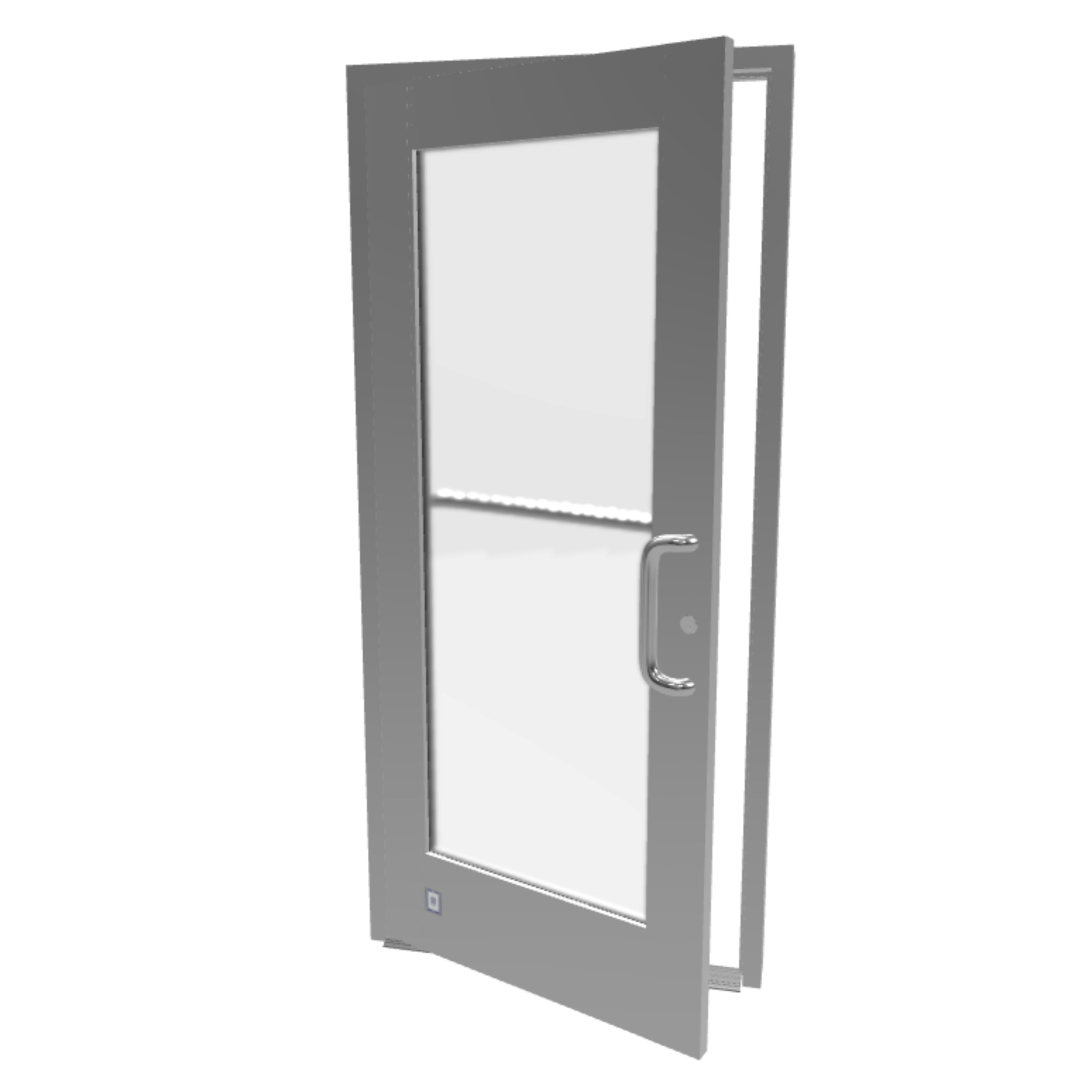

D500 Wide Stile Single Door
| Wide Stile Single Door | Wide Stile Single Door |
D500 Wide Stile Pair Door
| Wide Stile Pair Door | Wide Stile Pair Door |
Project Highlights
View More
×
More Project Highlights

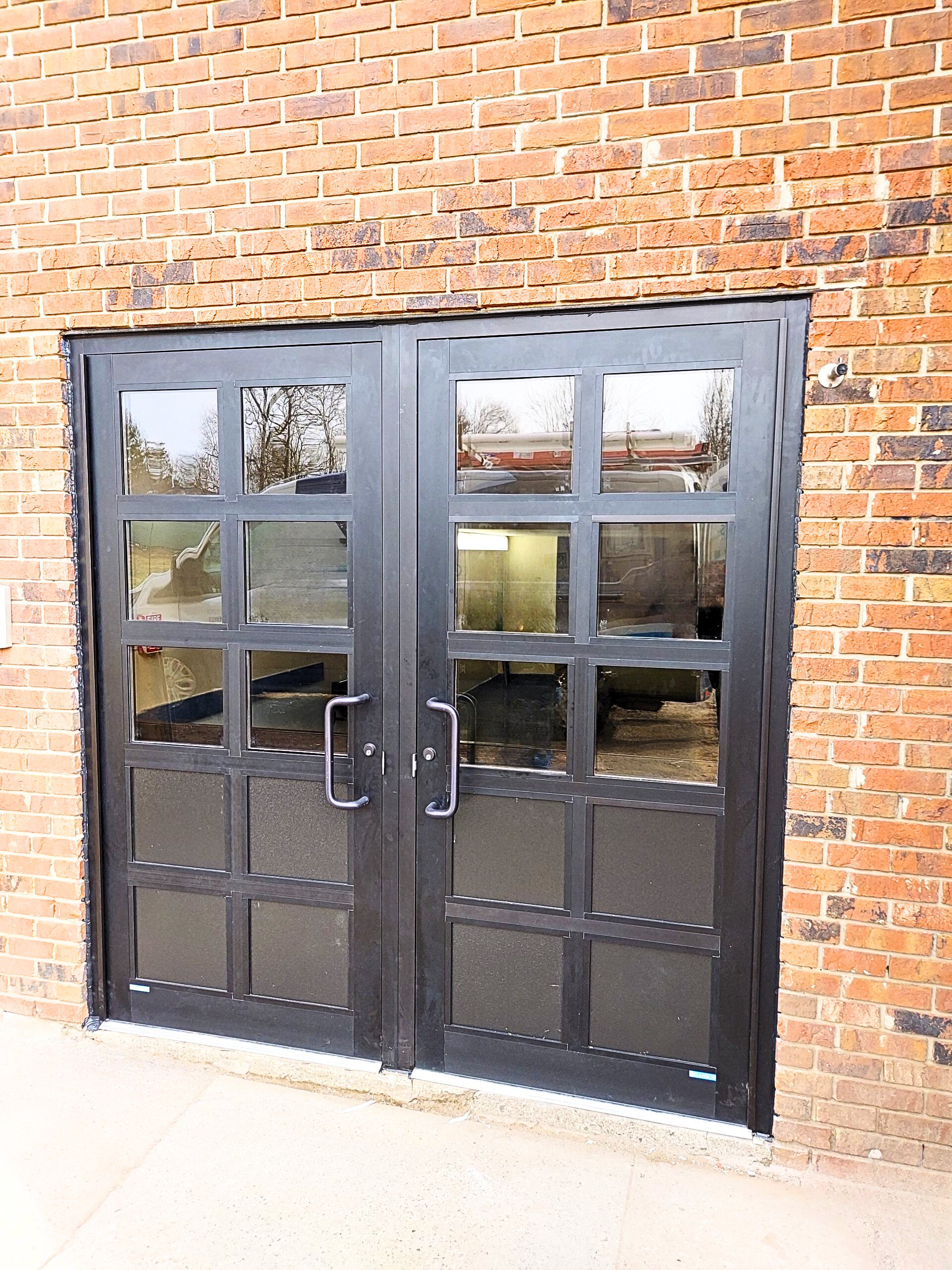

Commercial Door Project 1

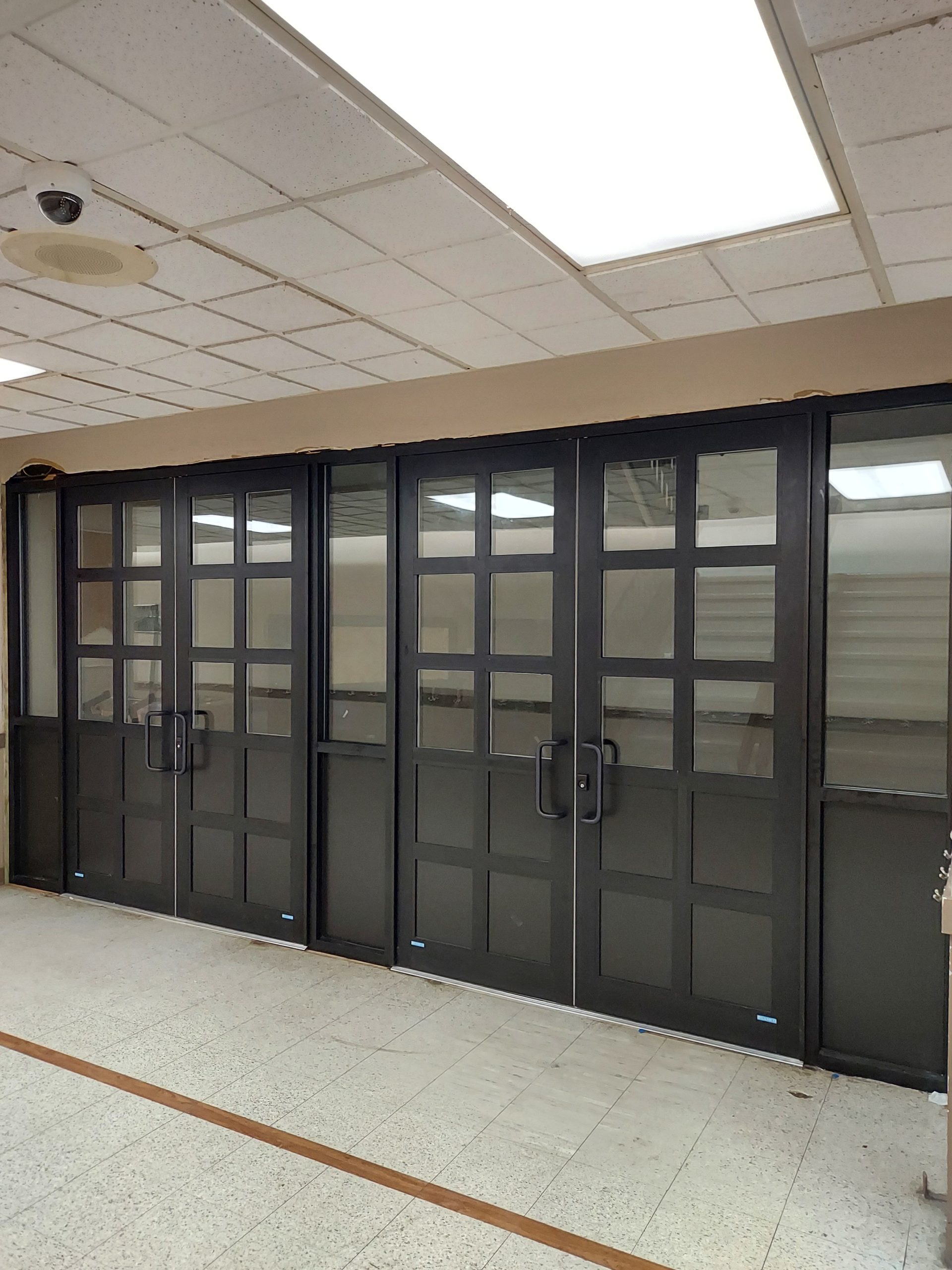

FG451 Medium Stile Door 01

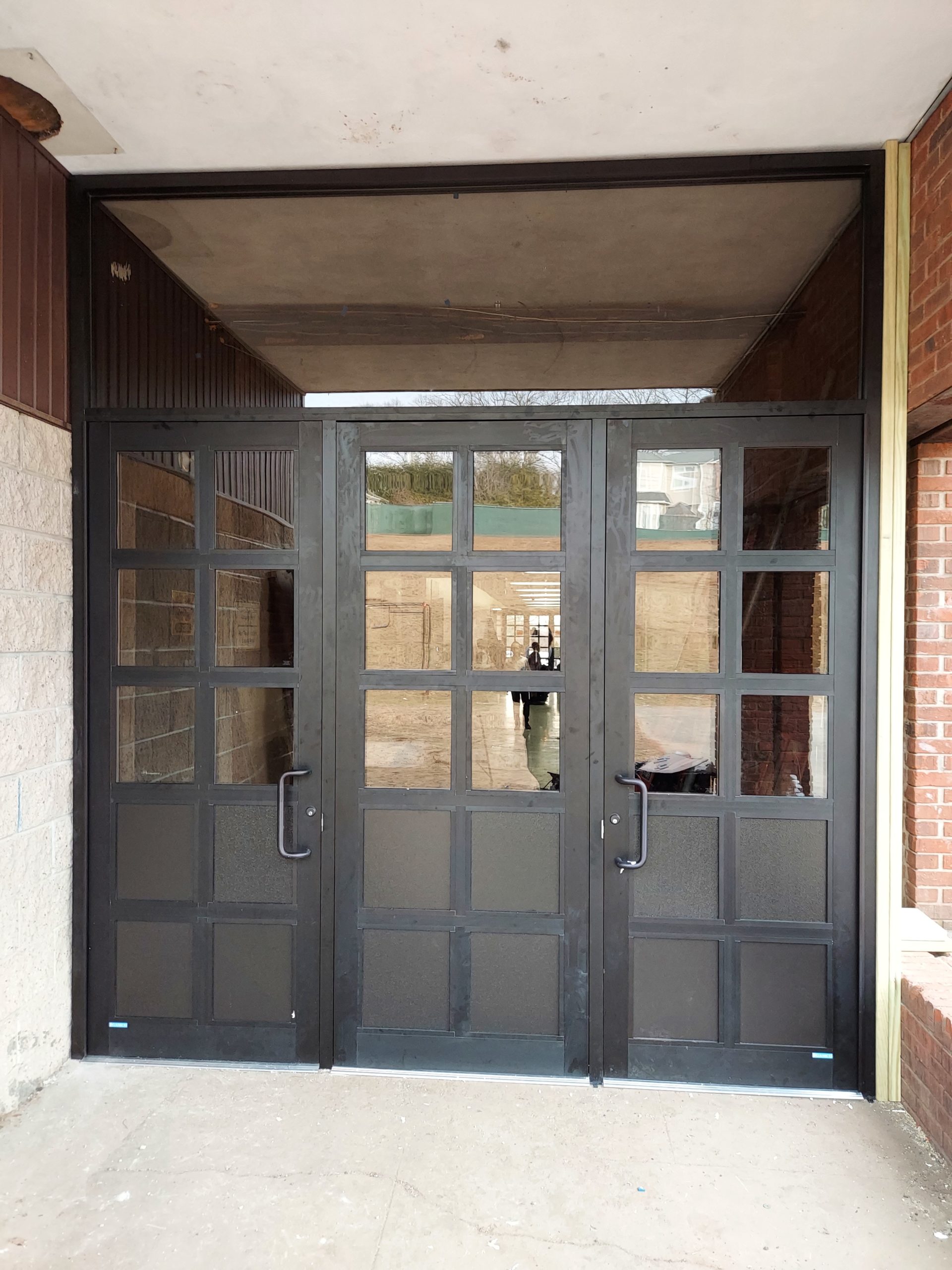

FG451 Medium Stile Door 02
FG451 Medium Stile Door 03

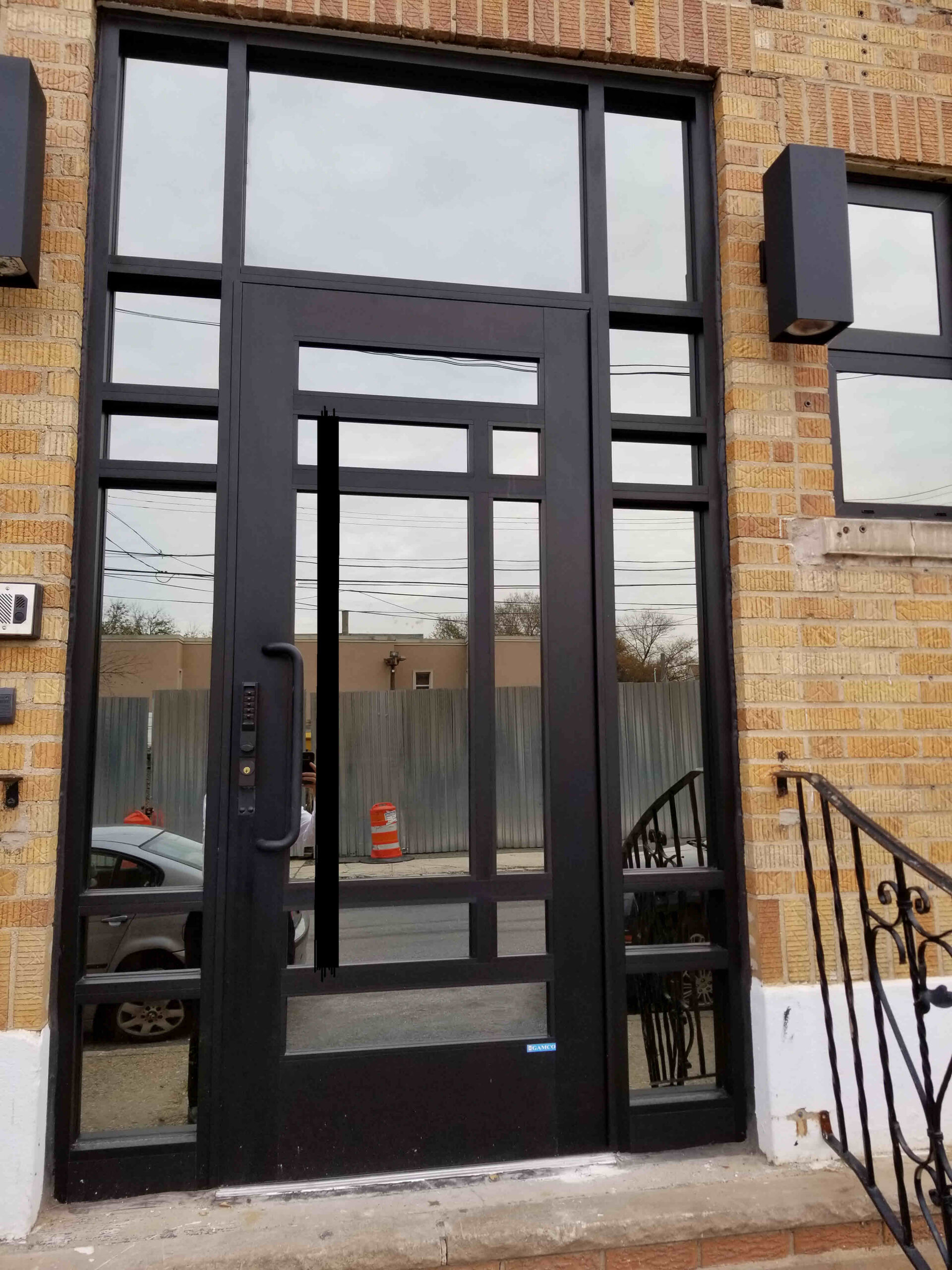

Weinberger
585 Stewart Garden City

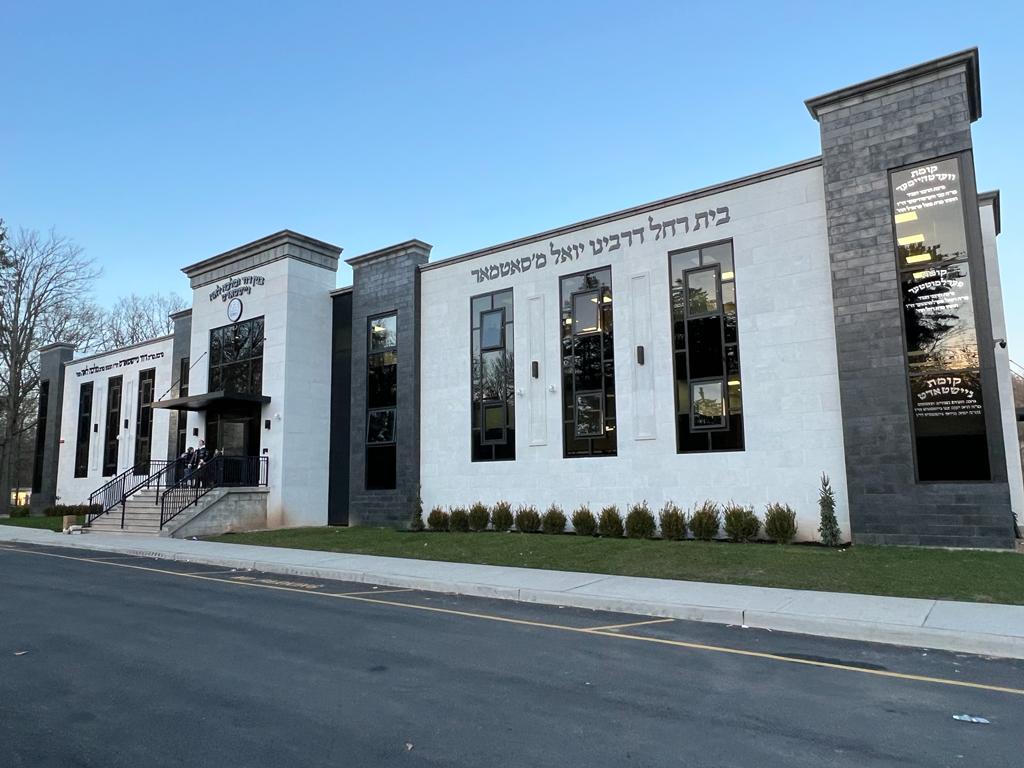

Commercial Door – 236 Cherry
236 Cherry LN - Central UTA of Monsey

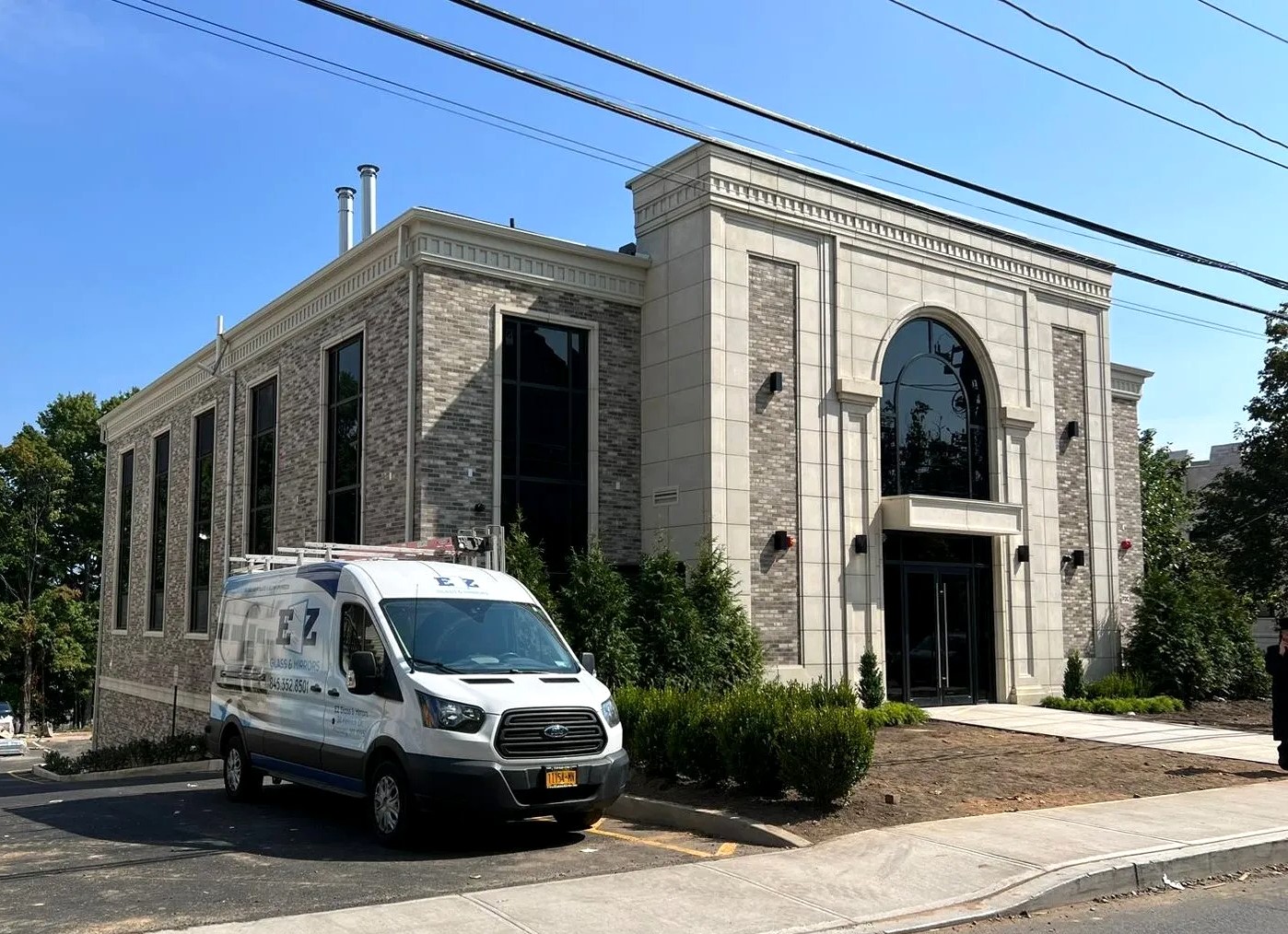

58 Main St
248 Driggs Ave Brooklyn 01
248 Driggs Ave Brooklyn 02

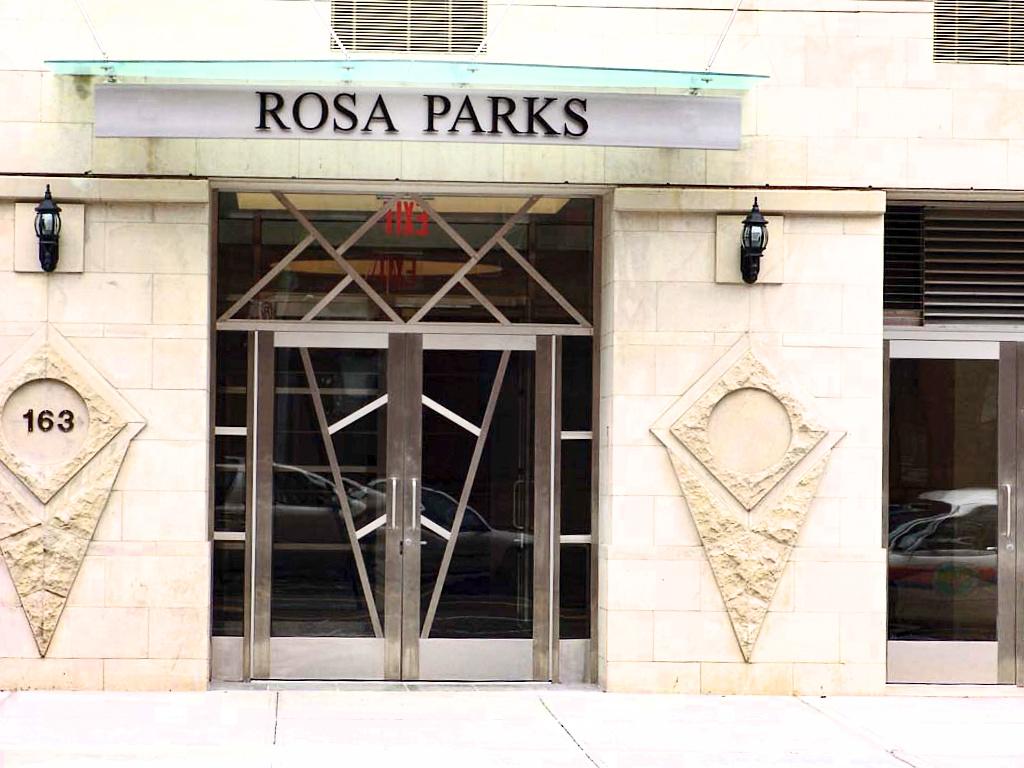

Commercial Door – Project 4
Commercial Door – Project 4.2
Commercial Door – Project 5
Commercial Door – Project 6
Commercial Door – Project 7
×
![]()
Richmond university Medical Center
Clear Anodized D500 wide-stile pair doors were supplied by GAMCO for this project.
ASPCA
Black-painted D350 medium-stile doors were supplied by GAMCO for this project.
Fish Cheeks (Williamsburg)
Black-painted D350 medium-stile doors were supplied by GAMCO for this project.
244 Viola Rd.
Dark-bronze anodized D350 medium-stile doors were supplied by GAMCO for this project.

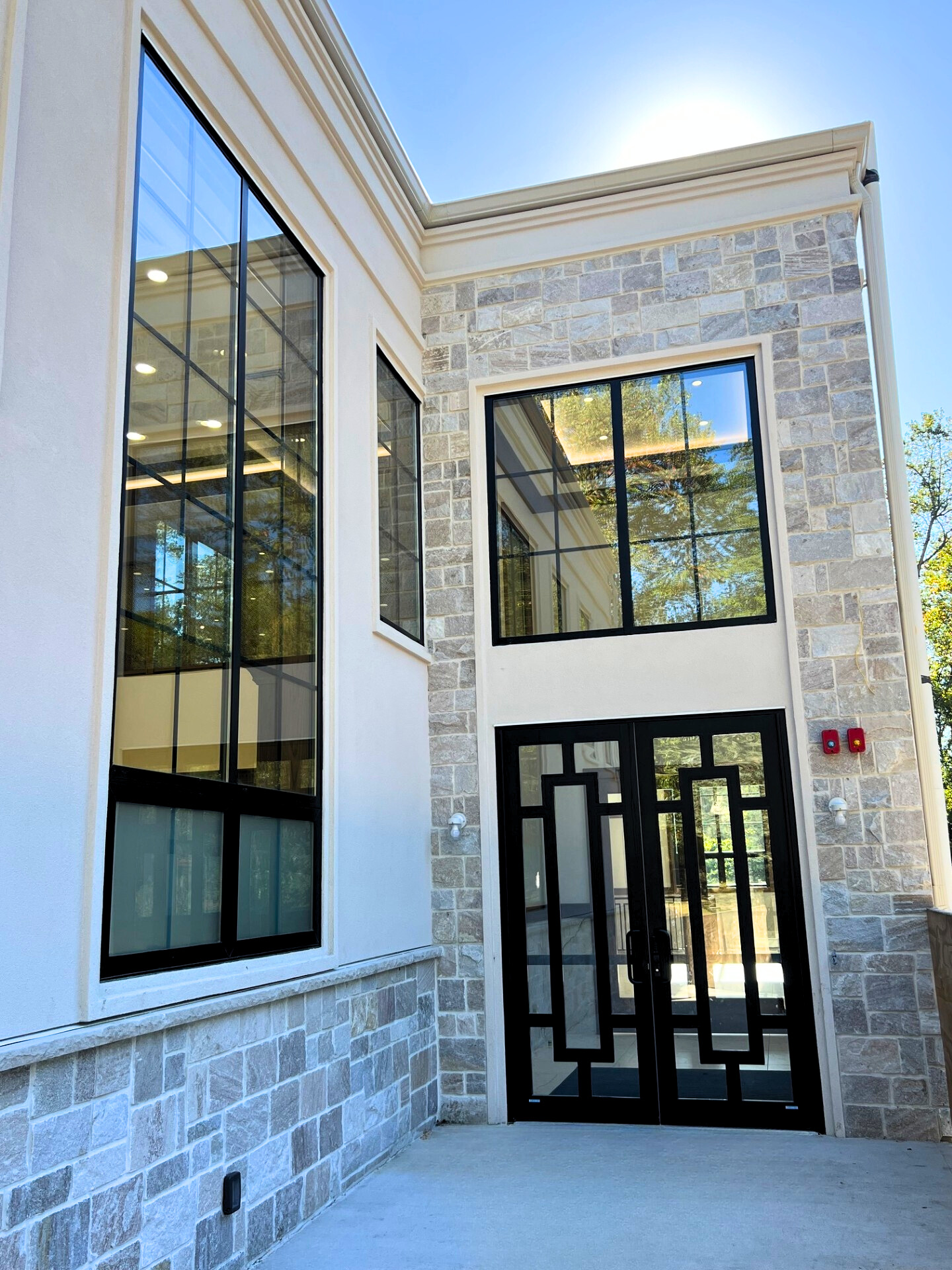

15 Ross ave
Dark-bronze anodized D350 medium-stile doors were supplied by GAMCO for this project.
601 stony ford rd.
Dark-bronze anodized D350 medium-stile doors were supplied by GAMCO for this project.
| D-Series Doors with FG-Series Flush-Glazed System | ||
|---|---|---|
| FG450 | (1-3/4″ x 4-1/2″) | Non-Thermal Break |
| FG451 | (2″ x 4-1/2″) | Non-Thermal Break |
| FG451T | (2″ x 4-1/2″) | Thermal Break |
| Type | Medium Stile Door | Flush-glazed FG450 | Flush-glazed FG451 | |
|---|---|---|---|---|
| Size (Width X Height) | 3′-0″ x 7′-0″ | 10′-5″ x 8′-0″ | 10′-5″ x 8′-0″ | |
| ASTM E 283 | Air Infiltration@6.24 PSF (50MPH) | 2.00 CFM/SQFT | 0.01 CFM/SQFT | 0.015 CFM/SQFT |
| ASTM E 331 | Water Test Pressure (No Leakage) | 1.57 PSF | 10.00 PSF | 12.00 PSF |
| ASTM E 330 | Uniform Structural Test To Positive & Negative Pressure (No Damage) | 82.50 PSF | 52.5 PSF | 52.5 PSF |
| D-Series Doors with FG-Series Flush Glaze System | ||
|---|---|---|
| FG450 | (1-3/4″ x 4-1/2″) | Non-Thermal Break |
| FG451 | (2″ x 4-1/2″) | Non-Thermal Break |
| FG451T | (2″ x 4-1/2″) | Thermal Break |
| Type | Medium Stile Door | Flush-glazed FG-450 | Flush-glazed FG-451 | |
|---|---|---|---|---|
| Size (Width X Height) | 3′-0″ x 7′-0″ | 10′-5″ x 8′-0″ | 10′-5″ x 8′-0″ | |
| ASTM E 283 | Air Infiltration@6.24 PSF (50MPH) | 2.00 CFM/SQFT | 0.01 CFM/SQFT | 0.015 CFM/SQFT |
| ASTM E 331 | Water Test Pressure (No Leakage) | 1.57 PSF | 10.00 PSF | 12.00 PSF |
| ASTM E 330 | Uniform Structural Test To Positive & Negative Pressure (No Damage) | 82.50 PSF | 52.5 PSF | 52.5 PSF |
