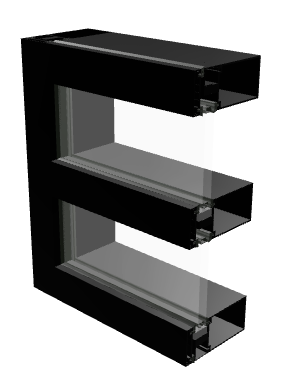

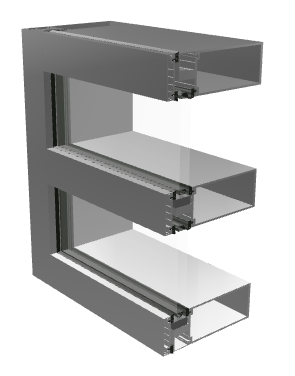

CW250 CUrtain Wall
-
Clear Anodized
-
Dark Bronze Anodized
- *Custom finish available upon request
Features & Options
Please click on hardware to learn more.
Butt Hinge / Continuous Hinge
Butt Hinge: Best for everyday doors that do not require full-length support.
Continuous Hinge: Runs the full height of the door, distributing weight evenly along the entire edge.
C.O.C Center Hung / Offset Hung
Note: These closers allow the door to be opened 90 or 105 degrees. Center Hung: Allows the door to swing in both directions while providing a clean, frameless look.
Offset Hung: This concealed closer can only open towards one direction.
Standard / C‑Pull and Push Handles
Standard Push/Pull Handles: Rectangular handles with ridges.
C-Pull/Push Handles: Door handle in the shape of a C.
Long / Short Lever Handle
Long Lever Handle: With an extended grip, less force is required to operate.
Short Lever Handle: Taking up less space, short lever handles are great for smaller or lighter doors.
Paddle Release / Panic Device
Paddle Release: A small, hand-operated push padding that unlatches the door when pressed.
Panic Device: A long horizontal bar across the door used for emergency exits.
Standard MS Lock / Latch Lock
Standard MS Lock: Uses a solid bolt that does not move unless a key turns it.
Latch Lock: Uses a spring‑loaded latch that automatically clicks into the strike when the door closes.
Electric Strike / Magnetic Lock
Electric Strike: Remote or electronic control of a mechanically latched door with access control systems (keypads, card readers, intercoms).
Magnetic Lock: Provides high holding force using an electromagnet. It secures doors that cannot use a latch or deadlatch.
Project Highlights
View MoreMore Project Highlights
The One Boutique Hotel
Renaissance Tower
Arcadia Bay Ridge (1)
Arcadia Bay Ridge (2)
Webster Park
Boulevard Assisted Living
Courtyard by Mariott Fresh Meadows
Courtyard by Mariott Fresh Meadows (2)
Courtyard by Mariott Fresh Meadows (3)
146 ST Flushing
East West Tower
The Ergo Park Plaza
The Ergo Park Plaza (2)
Arcadia LIC Condo
Arcadia LIC Condo (2)
Union Turnpike Fresh Meadows
27th LIC
Queensboro Tower
Astoria Residence
Far Rockaway Village (1)
Far Rockaway Village (2)
Pavese-McCormick Agency, Inc.
Pavese-McCormick Agency, Inc. (2)
Boulevard Alp Assisted Living (1)
Boulevard Alp Assisted Living (2)
Boulevard Alp Assisted Living (3)
Fu Hao Grace Towers (1)
Fu Hao Grace Towers (2)
Fu Hao Grace Towers (3)
861 60th Street (1)
861 60th Street (2)
524 Manhattan Condominium
42-05 Parsons Boulevard (1)
42-05 Parsons Boulevard (2)
42-05 Parsons Boulevard (3)
42-05 Parsons Boulevard (4)

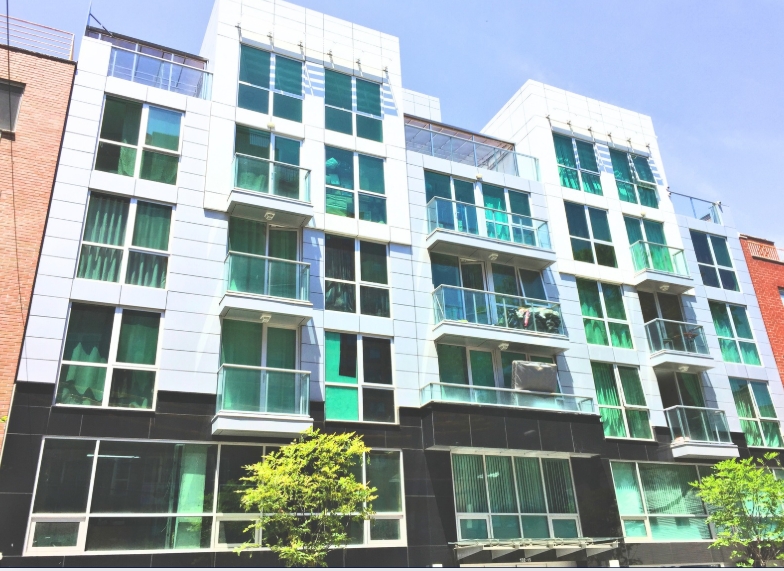

132-15 41st Avenue
Curtain Wall Project 1
Curtain Wall Project 1.2
Curtain Wall Project 2
Curtain Wall Project 3
Curtain Wall Project 4
Curtain Wall Project 5
Curtain Wall Project 5.2
Curtain Wall Project 6
Curtain Wall Project 6.2
Curtain Wall Project 7
Caton Flats
GAMCO's CW250 curtain wall system was supplied for this project.
Richmond University Medical Center
GAMCO's CW250 Curtain wall system (South and East façades) was fabricated and supplied by GAMCO for this project.
Custom curved CW
GAMCO fabricated a custom-shaped window/curtain wall spanning over 50 ft. wide with a height of 115-1/4".
Office Building in NJ
GAMCO supplied and fabricated our CW250 curtain wall for this project.

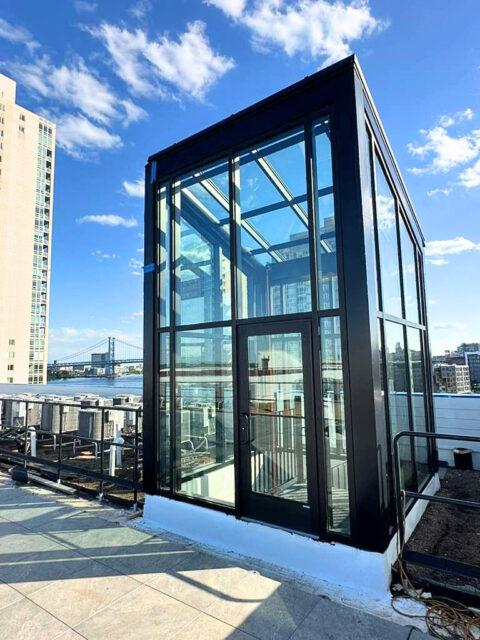

933 N Penn St
GAMCO's 4 face CW250 curtain wall system was used for this project.
Fish Cheeks (Williamsburg)
GAMCO's CW250-series curtain wall was fabricated and supplied in our custom black-painted matte finish for this project.
| Type | CW250 | CW250P | |
|---|---|---|---|
| Size (Width X Height) | 15'-0" x 30'-0" | 15'-0" x 30'-0" | |
| ASTM E 283-04 | Static Pressure Air Infiltration @6.24 PSF | <0.01 CFM/SQFT | <0.01 CFM/SQFT |
| ASTM E 331-00 | Static Pressure Water Resistance | 15 PSF | 15 PSF |
| ASTM E 330-02 | Uniform Structural Design Load ± Pressure | 60 PSF | 50 PSF |
| Uniform Structural Over Load ± Pressure | 90 PSF | 75 PSF | |
| AAMA 501-1-05 | Dynamic Pressure Water Resistance | 15 PSF | 15 PSF |
| AAMA 507-15 | Thermal Simulation (Glass U-Factor 0.24) | 0.41-0.42 | 0.34 |
| ASM E90 | Acoustical Performance | STC: N/A OITC: N/A |
STC: 37 OITC: 30 |
