355 Bard Ave, Staten Island, NY

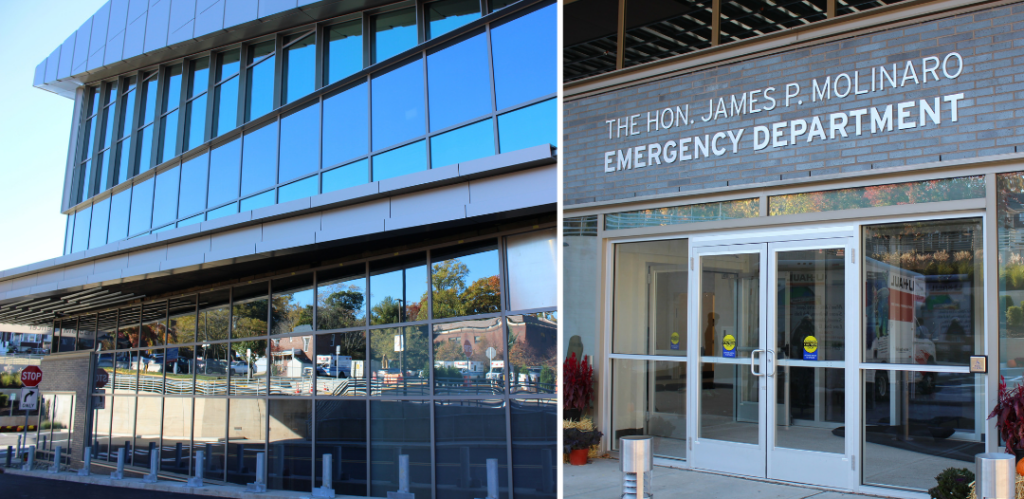

Over 12,000 square feet of curtain wall, storefront, and entrance doors were sourced and fabricated by GAMCO for RUMC’s new hospital expansion. The materials were selected for impact- and hurricane-resistance, meeting the hospital’s need for thermal performance, durability, sustainability, and resiliency.
The expansion wing Emergency Department spans three floors. The fenestration products supplied by GAMCO allow lighting and ease of entry to several new trauma bays, urgent care areas, and operating suites. High-performance materials and assemblies will ensure the hospital can continue to operate under any circumstances.
Products & Services Provided
Curtain Wall (south and east façades, sourced and fabricated by GAMCO)
- 3″ x 7-11/16″ framing members
- 55 psf design pressure rating
- 20 psf water rating
- Total opening: 55′ x 200′
Storefront (ground floor/main entrance, sourced and fabricated by GAMCO)
- 2-1/2″ x 5″ custom-fabricated
- 1-5/16″ glazing pocket
- 50 psf design pressure rating
- 12 psf water rating
- Impact-tested
D-series Commercial Doors (ground floor/main entrance, fabricated by GAMCO)
- D500 wide-stile double doors
- Thermally-broken, impact-resistant
- 5″ top/vertical rails
- High structural and water ratings
Project Partners
- Installer – The Jobin Organization of Hauppauge, NY
