BI-FOLD DOORWALL SYSTEM

Frame & Sill
2-1/2” x 5” Profile Head Track & Jamb
Standard Outswing Flush Sill
Optional Inswing Sill

Hardware
Upper Wheel Carrier on Head Track
Lower Guide in Sill
Top & Bottom Pivots
Hinges on Door Panels (Interior Pull Handle)
Operating Handle with Lock
Flush Bolts on Top & Bottom

Glass & Glazing
Standard 1” Insulated Clear Tempered Glass
Other Glass Option Available

*Options:
Panic Device

BF-200 Narrow Stile BF-350 Medium StileBF-500 Wide Stile
2-1/8” Stile & Top Rail3-1/2” Stile & Top Rail5” Stile & Top Rail
3-1/8” Bottom Rail5” Bottom Rail7-1/2” Bottom Rail

Download:
Catalog-Gamco Product Lines
Catalog-Product Architectural Details

GAMCO Product/TypeDrawing-PDF FileDrawing-CAD File

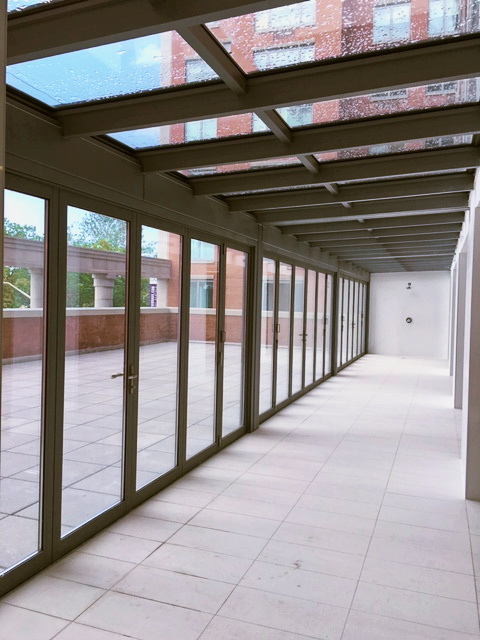

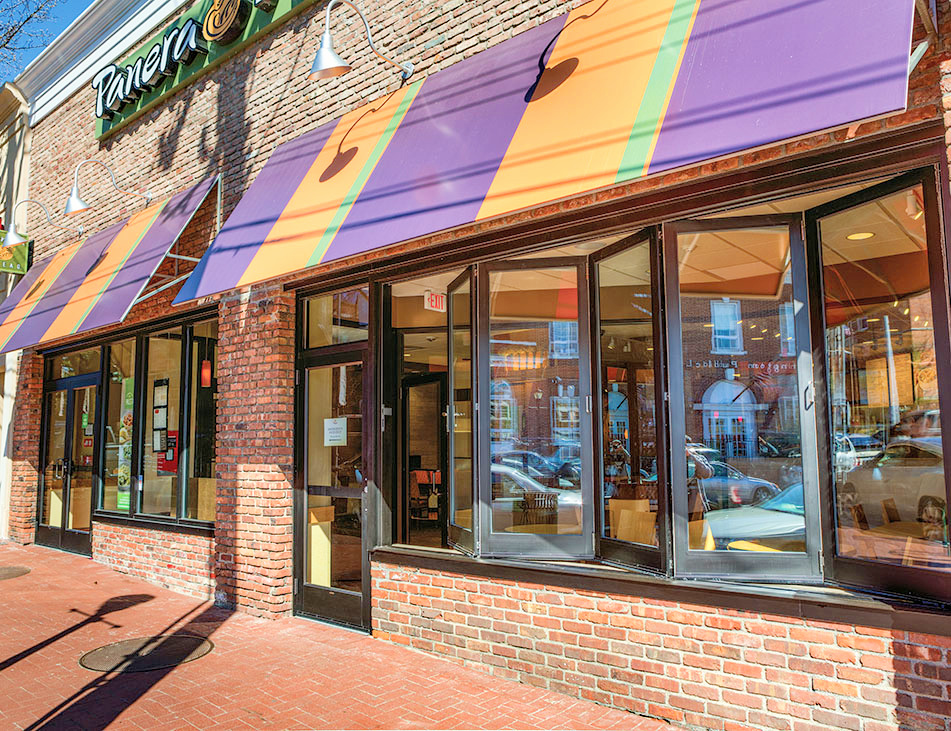

BI-FOLD DOOR / WALL SYSTEMBi Fold DoorBi Fold Door
