AW50 Rating
Features & Options:
Finishing:
3-1/4” Frame Profile
1/8” Wall Thickness
Insul-bar Thermal Break
1” Insulated Clear Tempered Glass
European Locket
Multi-Point Lock System
Double Door Available
In-Swing and Out-Swing
Clear Anodized
Dark Bronze Anodized
White Painted
Bronze Painted
Custom Finishes Available
Test Reports:
Balcony Door Guide Spec
Balcony Door Acoustical Test Report
Balcony Door Thermal Test Report
Balcony Door BD325 Sound Test Report
Balcony Door BD325 Structural Test Report
Balcony Door BD325 Thermal Test Report
| GAMCO Product/Type | Drawing-PDF File | Drawing-CAD File | |
|---|---|---|---|

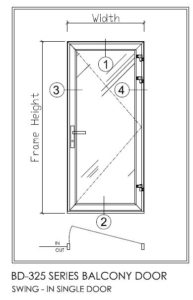

 | BD325-SINGLE IN SWING | BD325-SINGLE IN SWING | BD-325 |
 | BD325-SINGLE OUT SWING | BD325-SINGLE OUT SWING | BD-325 |
 | BD325-DOULBE IN SWING | BD325-DOULBE IN SWING | BD-325 |
 | BD325-DOUBLE OUT SWING | BD325-DOUBLE OUT SWING | BD-325 |
| Gamco Model/Description | Heavy Commercial(HC)/ Commercial(C) | Wall Thickness | Frame Depth | Minimum Size | Maximum Size | Air-Std | Water-psf | Deflect-psf | Struct-psf | Matching Fixed Frame | Screen Available | Flanged Fame | Colors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BD 325 Thermal Balcony Door | AW-50 | 0.125 | 3.25 | 18″ x 24″ | 40″ x 96″ | 0.10 | 10.03 | 50.16 | 75.24 | YES | NO | NO | Clear Anodized Dark Bronzed Anodized White Painted Bronze Painted |
