Features & Options:
Butt Hinge / Offset Pivot
Center Hung / Offset Hung with C.O.C / Floor Closer
Standard / C-Pull and Push Handles
Long / Short Lever Handle
Paddle Release / Panic Device
Standard Ms Lock / Latch Lock
Electric Strike / Magnetic Lock
*Other options: specific hardware upon request
| D-Series Doors with FG-Series Flush Glaze System | ||
|---|---|---|
| FG-450 | (1-3/4″ x 4-1/2″) | Non-Thermal Break |
| FG-451 | (2″ x 4-1/2″) | Non-Thermal Break |
| FG-451 T | (2″ x 4-1/2″) | Thermal Break |
| Type | Medium Stile Door | Flush-glazed FG-450 | Flush-glazed FG-451 | |
|---|---|---|---|---|
| Size (Width X Height) | 3′-0″ x 7′-0″ | 10′-5″ x 8′-0″ | 10′-5″ x 8′-0″ | |
| ASTM E 283 | Air Infiltration@6.24 PSF (50MPH) | 2.00 CFM/SQFT | 0.01 CFM/SQFT | 0.015 CFM/SQFT |
| ASTM E 331 | Water Test Pressure (No Leakage) | 1.57 PSF | 10.00 PSF | 12.00 PSF |
| ASTM E 330 | Uniform Structural Test To Positive & Negative Pressure (No Damage) | 82.50 PSF | 52.5 PSF | 52.5 PSF |
Download:
D-200 Series Door Detail
D-350 Series Door Detail
D-500 Series Door Detail
D Series DOOR Type Model
GAMCO Brochure D Series Door
GAMCO Product Catalog
Catalog-Product Architectural Details
Test Reports:
D Series Door Test Report
D-350 Medium Stile Door Test Report
D-350 Medium Stile AAMA507 Thermal Test Report
FG450 Structural Test Report
FG451 Structural Test Report
FG451T Thermal AAMA507 Test Report
FG451T Structural Test Report
| GAMCO Product/Type | Drawing-PDF File | Drawing-CAD File | |
|---|---|---|---|
 | D200 Narow Stile Single Door | Narrow Stile Single Door | Narrow Stile Single Door |

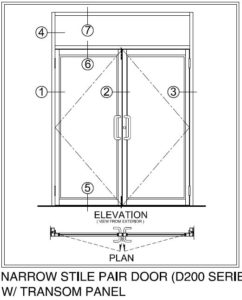

 | D200 Narrow Stile Double Door | Narrow Stile Double Door | Narrow Stile Double Door |

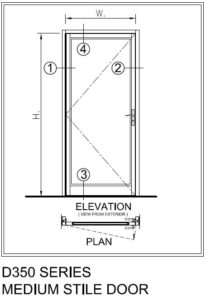

 | D350 Medium Stile Single Door | Medium Stile Single Door | Medium Stile Single Door |
 | D350 Medium Stile Double Door | Medium Stile Double Door | Medium Stile Double Door |

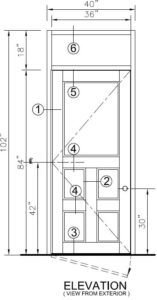

 | D500 Wide Stile Single Door | Wide Stile Single Door | Wide Stile Single Door |
 | D500 Wide Stile Double Door | Wide Stile Double Door | Wide Stile Double Door |
