Select project highlights

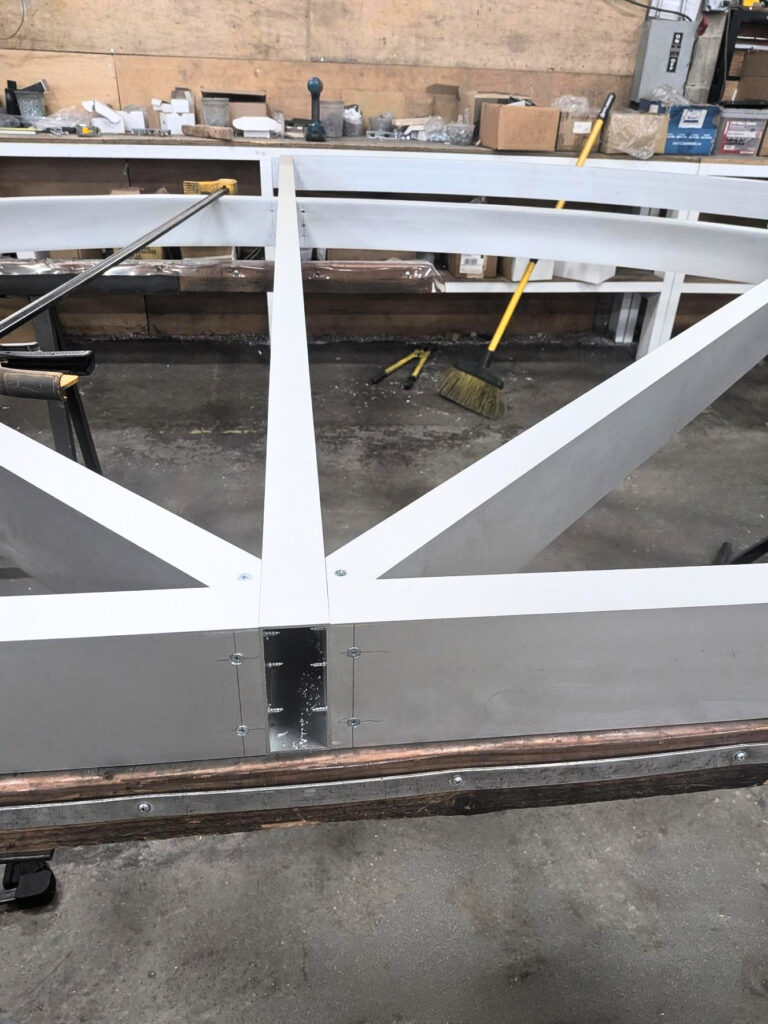

Custom Fabricated arch at petco
Custom Fabrication
- 219″ (W) X 109″ (H)
- 1-3/4″ X 4-1/2″ plain tube
- 3/4″ X 3/4″ U-channel
- 1/4″ glass prep
- Clear anodized finish
We extend our appreciation to JYB Window & Doors Inc., the installers of this project.

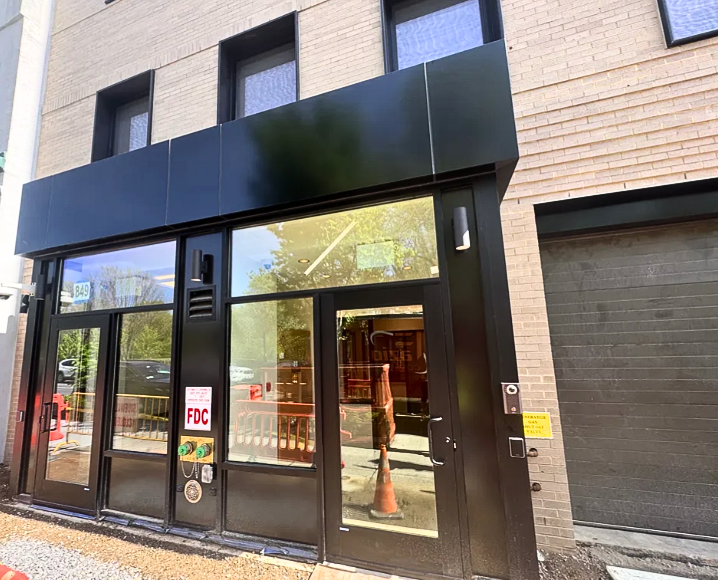

849 Crotona
2″ X 4-1/2″ non-thermal break material
4-1/2″ X 4-1/2″ corner posts
7″ mill saddle, 1/2″ height
4″ mill saddle, 1/2″ height
2” X 4-1/2″ thermal break material
5″ top and vertical rail
10″ bottom rail with concealed bottom sweep
Select #44 continuous hinge
12″ wire offset C-pull handle
A.R.#4568 long lever handle
A.R.#4510 latch lock
A.R.#7100 24 VAC electric strike
Key cylinder
Norton 1601 surface mounted closer
2-1/2” X 5-1/2” back member profile
2-1/2” profile, thermal break aluminum
Single swing out casement window
2 point vertical locks
Standard casement hinges
Standard rotary handles
4” limit arm

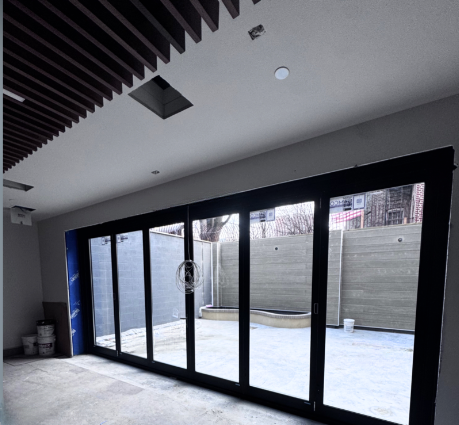

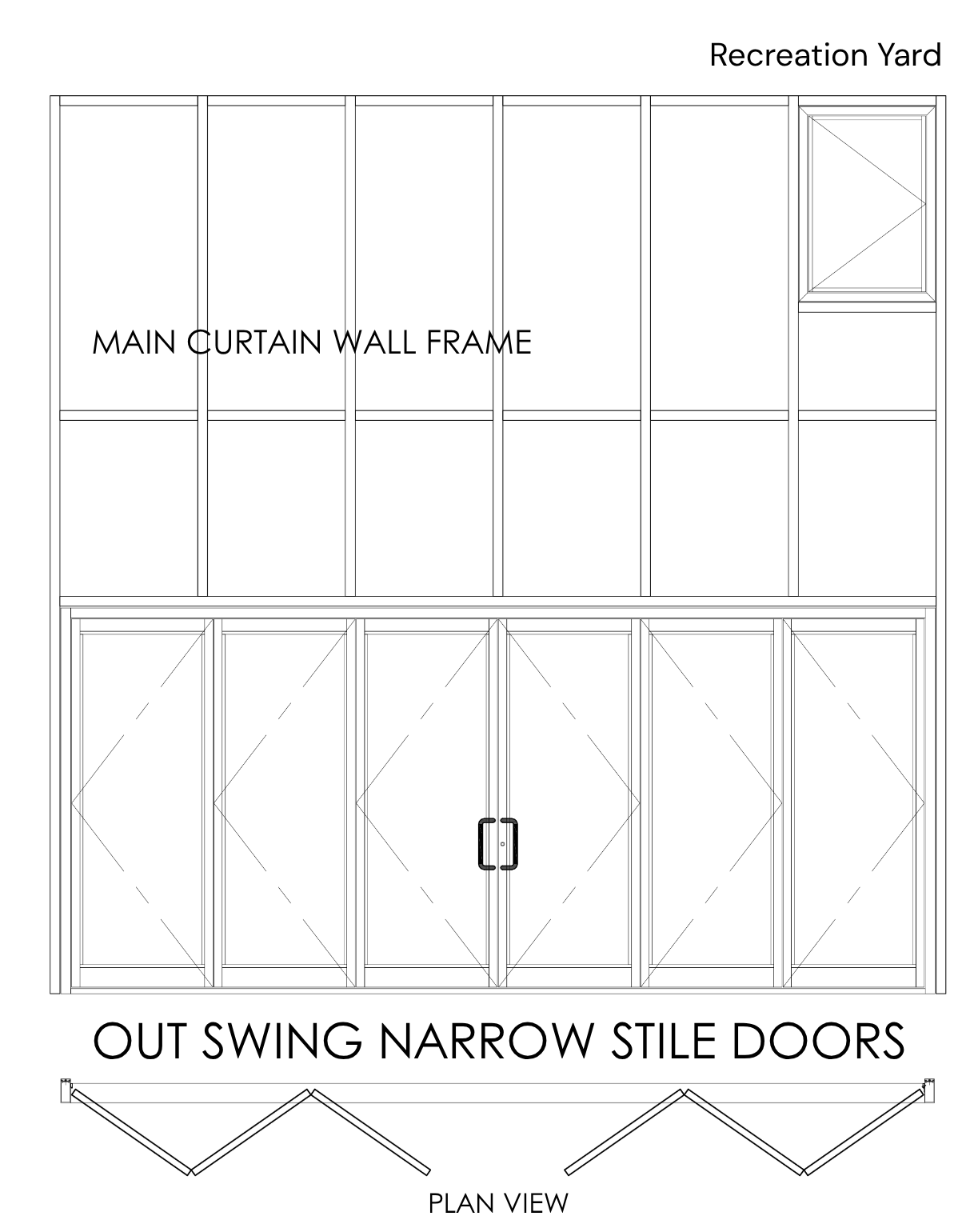

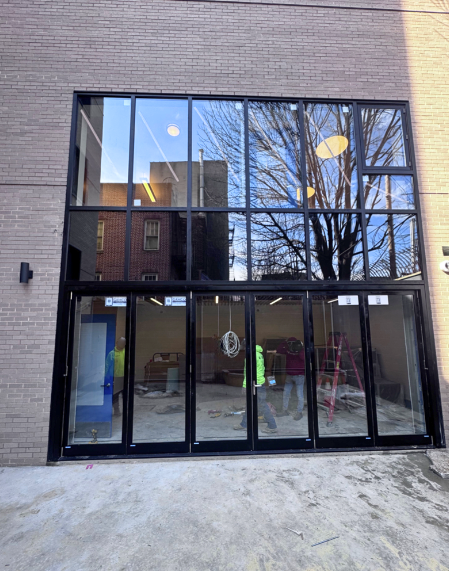

BF200 Narrow-stile Bi-fold Doors
6 panel swing out bi-folding doors
2-1/8” top rail
2-1/8” vertical stiles
3-1/8” bottom rail
Flush-bolts on inactive leafs
Lockset with lever handles
We extend our appreciation to Expedite Storefront & Glass, Inc., the installers of this project.
Custom Mid-rail Doors
5” top and vertical
10” bottom rail
3-1/2” mid rail
1-1/2” intermediate rails
Select #44 continuous hinge
2” X 4-1/2” non-thermal break material
5” mill panic saddle, 1/2” height
4” mill saddle, 1/2” height
Hardware provided by AVIV, installed by GAMCO
70” offset ladder pull handle
Borg #7000 number lockset with lever handle
Von Duprin 99 series panic
Borg number lock with knob
Hess electric strike
We extend our appreciation to AVIV Glass & Mirror LLC, the installers for this project.
