Features & Options:
1-3/4″ X 4-1/2″ OR 2″ X 4-1/2″ C.O.C. header
4″ mill saddle (optional sizes available upon request)
1/2″ clear tempered glass with polished edges
Center-hung, single or double-acting
12″ straight C-pull handles, back-to-back (custom handles upon request)
Bottom rail lockset with bolt retractions
Key cylinder on both sides (thumbturn upon request)
Choice of:
OPTIONAL: 4-3/8″ full-size dry-glazing shoe(s) on top and/or bottom
OPTIONAL: Patch fitting(s) on top and/or bottom
Available Finishes:
Clear Anodized
Dark Bronze Anodized
Other Options:
Some custom finishes and specific hardware may be available upon request
Download:
GAMCO Technical Details Catalog
GAMCO Product Catalog

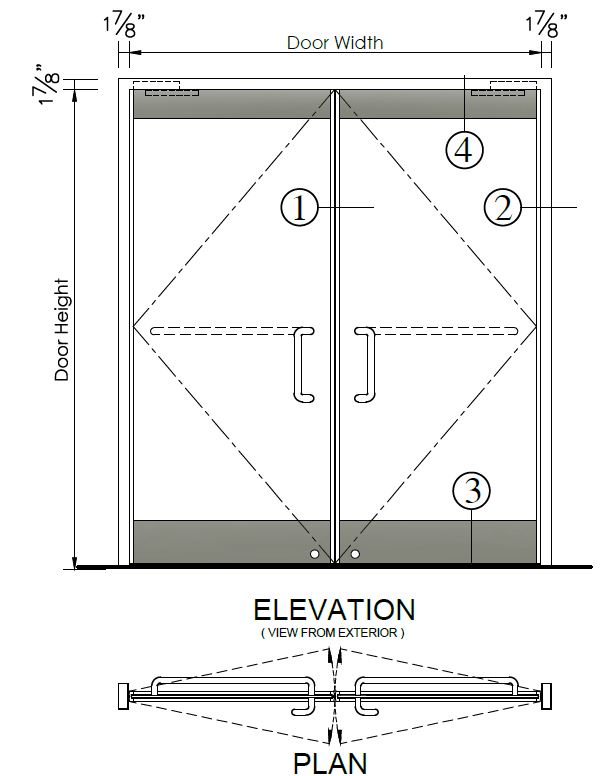

| Configuration Type | Features & Options | Drawing (PDF) | Drawing (CAD) |
|---|---|---|---|
Type A | Top and bottom patch fitting Header Options 1-3/4" x 4-1/2" 2" x 4-1/2" | View DG400 (Type A) PDF | Coming soon |
Type B | Top and bottom patch fitting with patch lock Header Options 1-3/4" x 4-1/2" 2" x 4-1/2" | View DG400 (Type B) PDF | Coming soon |
Type C | Top patch fitting, 4-3/8" bottom shoes with locks Header Options 1-3/4" x 4-1/2" 2" x 4-1/2" | View DG400 (Type C) PDF | Coming soon |
Type D | 4-3/8" top and bottom shoes with locks Header Options 1-3/4" x 4-1/2" 2" x 4-1/2" | View DG400 (Type D) PDF | Coming soon |
